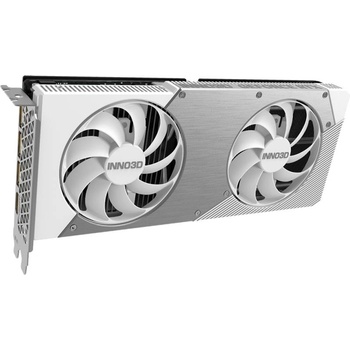

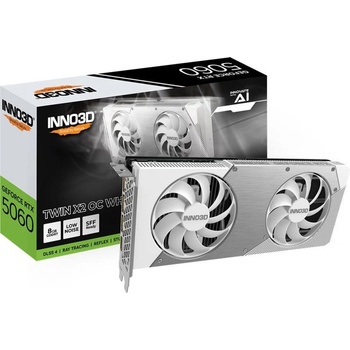

Inno3D GeForce RTX 5060 TWIN X2 OC WHITE 8GB GDDR7 128bit (N50602-08D7X-195070W)

NVIDIA DLSS 4
Supreme Speed. Superior Visuals. Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. ‌The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities. Supreme Speed. Superior Visuals. Powered by AI.

NVIDIA Reflex 2
Compete at Warp Speed

Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input. Compete at Warp Speed

Creators
Your Creative
AI-dvantage

NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows. Your Creative AI-dvantage

Specifications

CUDA Cores
3840

Boost Clock (MHz)
2527MHz

Base Clock (MHz)
2280MHz

Minimum System Power Requirement (W)
550W

Supplementary Power Connectors
1x PCIe 8-pin cables

Memory Clock
28Gbps

Standard Memory Config
8GB

Memory Interface
GDDR7

Memory Interface Width
128-bit

Memory Bandwidth (GB/sec)
448 GB/sec

Real-Time Ray Tracing
Yes

Ray Tracing Cores
4th Generation, 58 TFLOPS

Tensor Cores
5th Generation, 614 AI TOPS

NVIDIA Architecture
Blackwell

Microsoft DirectX
12 Ultimate

NVIDIA DLSS
4

NVIDIA Ansel
Yes

NVIDIA FreeStyle
Yes

Bus Support
PCI Express Gen 5

NVIDIA ShadowPlay
Yes

OS Certification
Windows 11 / 10, Linux, FreeBSDx86

NVIDIA Highlights
Yes

NVIDIA G-SYNC-Ready
Yes

Game Ready Drivers
Yes

NVIDIA Studio Drivers
Yes

NVIDIA GPU Boost
Yes

Vulkan API
1.4

OpenGL
4.6

NVIDIA Encoder
1x Ninth Generation

NVIDIA Decoder
1x Sixth Generation

Length
250mm

Height
116mm

Width
41mm

Multi Monitor
up to 4

Maxmium Digital Resolution
4K at 480Hz or 8K at 165Hz with DSC

HDCP
2.3

Standard Display Connectors
3x DisplayPort 2.1b, 1x HDMI 2.1b
