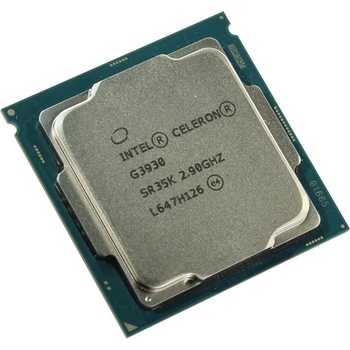

Intel Celeron G3930 2-Core 2.9GHz LGA1151 Tray (CM8067703015717)

General information

Type
CPU / Microprocessor

Market segment
Desktop

Family
Intel Celeron Dual-Core

Model number
G3930

CPU part numbers

CM8067703015717 is an OEM/tray microprocessor

Frequency
2900 MHz

Bus speed
8 GT/s DMI

Clock multiplier
29

Package
1151-land Flip-Chip Land Grid Array

Socket
Socket 1151 / H4 / LGA1151

Size
1.48" x 1.48" / 3.75cm x 3.75cm

Introduction date
January 3, 2017

S-spec numbers

Part number
ES/QS processors
Production processors


QL3H
SR35K

BX80677G3930

+

BXC80677G3930

+

CM8067703015717

+

Unknown
+


Architecture / Microarchitecture

Microarchitecture
Kaby Lake

Processor core
Kaby Lake-S

Core stepping
S0 (SR35K)

Manufacturing process
0.014 micron

Data width
64 bit

The number of CPU cores
2

The number of threads
2

Floating Point Unit
Integrated

Level 1 cache size
2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches

Level 2 cache size
2 x 256 KB 4-way set associative caches

Level 3 cache size
2 MB 8-way set associative shared cache

Physical memory
64 GB

Multiprocessing
Uniprocessor

Extensions and Technologies

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
EM64T / Extended Memory 64 technology / Intel 64
NX / XD / Execute disable bit
VT-x / Virtualization technology
VT-d / Virtualization for directed I/O
MPX / Memory Protection Extensions
SGX / Software Guard Extensions
TSX / Transactional Synchronization Extensions

Low power features

Core C1/C1E, C3, C6, C7 and C8 states
Package C2, C3, C6, C7 and C8 states
Enhanced SpeedStep technology

Integrated peripherals / components

Display controller

3 displays
DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4

Integrated graphics
GPU Type: Intel HD 610
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1050

Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, DDR4-2133
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 34.1
ECC supported: Yes

Other peripherals

Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)

Electrical / Thermal parameters

Maximum operating temperature
100°C

Thermal Design Power
51 Watt

Notes on Intel Celeron G3930

Theprocessor hasthe following security, data protection and/or softwarefeatures: IntelSecure Key, Identity Protection technology, OS Guardand Boot Guard.
The CPU is compatible with DirectX 12 and OpenGL 4.4 APIs.
Thegraphics unit has the following software features enabled: IntelQuickSync Video, Clear Video technology, Clear Video HD technologyand InTru3D technology.
