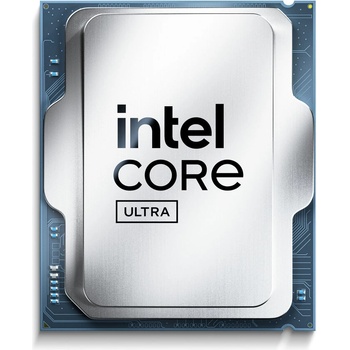

Intel Core Ultra 5 235 14-Core 3.4GHz LGA1851 Box (BX80768235)

Intel Core Ultra 5 235
BX80768235

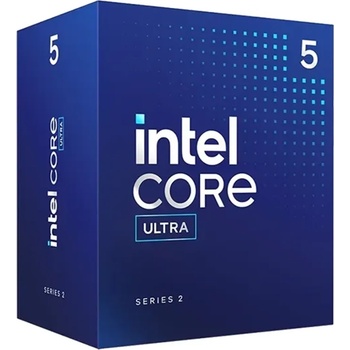

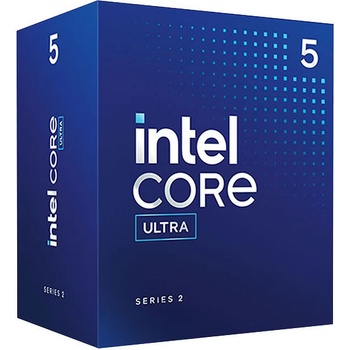

Box

Essentials
Product Collection: Intel Core Ultra Processors (Series 2)
Code Name: Products formerly Arrow Lake
Vertical Segment: Desktop
Processor Number: 235
Overall Peak TOPS (Int8): 27

CPU Specifications
Total Cores: 14
# of Performance-cores: 6
# of Efficient-cores: 8
Total Threads: 14
Max Turbo Frequency: 5 GHz
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core Base Frequency: 3.4 GHz
Efficient-core Base Frequency: 2.9 GHz
Cache: 24 MB Intel Smart Cache
Total L2 Cache: 26 MB
Processor Base Power: 65 W
Maximum Turbo Power: 121 W
Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO | WindowsML | DirectML | ONNX RT | WebNN
CPU Lithography: TSMC N3B

Memory Specifications
Max Memory Size (dependent on memory type): 192 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2
ECC Memory Supported: Yes

GPU Specifications
GPU Name: Intel Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 2 GHz
GPU Peak TOPS (Int8): 6
Graphics Output: DP2.1 UHBR20 | HDM2.1 FRL 12GHz | eDP1.4b
Xe-cores: 3
Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
Max Resolution (DP): 8K @ 60Hz
Max Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3
Intel Quick Sync Video: Yes
# of Displays Supported: 4
Device ID: 0x7D67
Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes

NPU Specifications
NPU Name: Intel AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO | WindowsML | DirectML | ONNX RT | WebNN

Expansion Options
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
Intel Thunderbolt 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4
Max # of PCI Express Lanes: 24

Package Specifications
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2022C
Max Operating Temperature: 105 °C

Advanced Technologies
Intel Volume Management Device (VMD): Yes
Intel Gaussian & Neural Accelerator: 3.5
Intel Thread Director: Yes
Intel Speed Shift Technology: Yes
Intel Turbo Boost Technology: 2
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel SSE4.1 | Intel SSE4.2 | Intel AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes

Security & Reliability
Intel vPro Eligibility: Intel vPro Enterprise | Intel vPro Platform
Intel Threat Detection Technology (TDT): Yes
Intel Active Management Technology (AMT): Yes
Intel Standard Manageability (ISM): Yes
Intel Remote Platform Erase (RPE): Yes
Intel One-Click Recovery: Yes
Intel Control-Flow Enforcement Technology: Yes
Intel Total Memory Encryption - Multi Key: Yes
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel OS Guard: Yes
Intel Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel Stable IT Platform Program (SIPP): Yes
Intel Virtualization Technology with Redirect Protection (VT-rp): Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
