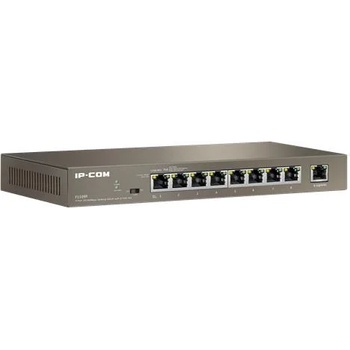

IP-COM F1109P

1109P-8-102W

• 9-Port Fast Unmanaged Switch With 8-Port PoE

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3af/at standards


•  9*10/100Mbps Base-T RJ45 port; Ports 1-8: IEEE 802.3af/at PoE ports


•  2K MAC address and MAC address learning


•  IEEE 802.3x full duplex flow control, and backpressure half duplex flow control


•  1.8 Gbps switching fabric for non-blocking line-speed forwarding


•  maximum power output of each PoE port: 30 W; maximum power output of the switch: 102W.


•  1Mb packet buffer, twice of that counterparts


•  Supports port VLAN; ports 1 to 8 can communicate with the uplink port (port 9) but cannot communicate with each other



Specs:



Interface
8 10/100M Base-T ports(Data/Power), 1 10/100M Base-T ports(Data)

Port Lightning Protection
6KV

Store and forward
Yes

Exchange Capacity
1.8 Gbps

Packet forwarding rate
1.34Mpps

MAC Address Table
2K

PoE supply management
Port 1-8 support IEEE802.3at/af PoE standard

PoE through pin
1 2 4 5 +;3 6 7 8 -

Voltage input range
AC: 100-240V～50/60Hz

DC: 51V 2A

Dimensions
177.5*104*26mm( W x D x H )

Power Consumption
In full configuration: 102W

PoE Max Power Supply: 92W

Port Features
Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

VLAN:ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.

Environment Operating
Temperature: 0℃~40℃(32℉~104℉)

Storage Temperature: -40℃~70℃(-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
