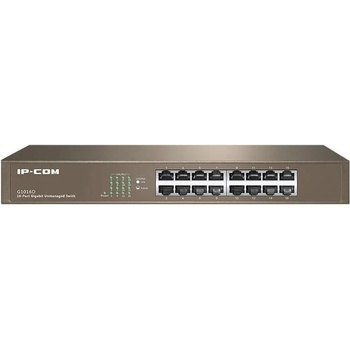

IP-COM G1016D

G1016D
16-Port Gigabit Unmanaged Switch

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab standards


• 16*10/100/1000 Mbps auto-negotiation RJ45 ports


• Auto MDI/MDIX


• 8K MAC address , MAC auto Learning & Auto Aging


• IEEE 802.3x full duplex flow control, and backpressure half duplex flow control


• 32 Gbps switching fabric for non-blocking line-speed forwarding


• LED indicators for indicating working status and troubleshooting


• Built-in power supply system with 6 kV common mode and 4 kV differtiatial mode lightning protection


• 16 ports all with 6 kV common mode lightning protection


• IP camera connection



Specs:

Standard
IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab

Forwarding Speed
10Mbps : 14880pps

100Mbps : 148800pps

1000Mbps : 1488000pps

Transmission Media
10BASE-T: UTP category 3, 4, 5 cable

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable

Port
16*10/100/1000Mbps auto-negotiation RJ45 ports  (Auto MDI/MDIX)

LED Indication
16*Link/Act indicator, 1*power indicator

Dimensions
294mm×178mm×44mm

Switch Feature
Store-and-Forward

MAC auto Learning & Auto Aging

8K MAC

32Gbps Backpanel bandwidth

Lighting Proof
lightning protection 6KV for power supply, 6KV for all ports

Power Input
100~240V AC，50/60Hz

Operating Environment
Temperature:0℃~45℃

Humidity:10%~90% non-condensing

Storage Environment
emperature:-40℃~70℃

Humidity:5%~90% non-condensing
