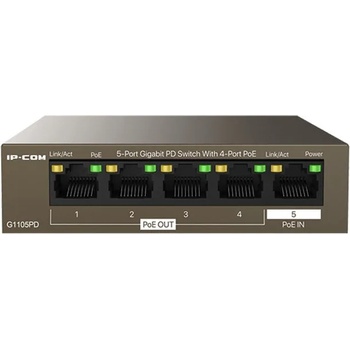

IP-COM G1105PD

G1105PD

5-Port Gigabit PD Switch With 4-Port PoE

Featuring low cost, high performance and plug & play, the PoE switch G1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.

• Five 10/100/1000 Mbps auto-negotiation ports


• Port 5 supports power supply by a PSE compliant with IEEE 802.3af/at


• Ports 1 - 4 support power supply to low-power PDs compliant with IEEE 802.3af


• The switch supports auto MDI/MDIX, simplifing the network structure and maintenance


• The non-blocking wire-speed forwarding function guarantees the smooth operation of network applications


• Full-duplex flow control and half-duplex back pressure control prevent frame loss caused by port blocking


• The switch supports the store-and-forward transfer mode and a 2 K MAC address table


• The switch supports 9K jumbo frame, improving the forwarding rate of large files


• The switch supports IP camera connection and guarantees the smoothness and clearness of monitoring videos



Hardware specifications

Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

Transmission media
10Base-T: CAT3 UTP or better

100Base-TX: CAT5 UTP or better

1000Base-T: CAT5e UTP or better

Dimensions
100 mm x 100 mm x 26 mm(L x W x H)

Product material
Metal

Fan
Fanless

LED indicators
1 x Power LED indicator

4 x PoE LED indicator

5 x Link/Act LED indicator

Service port description

Fixed ports
5 x 10/100/1000 Mbps auto-negotiation RJ45 ports (supporting Auto MDI/MDIX)

PoE out
PoE standard:IEEE 802.3af

PoE power cable core:8 cores: voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is -

PoE port:1 - 4

Maximum output power of a single port:15.4 W

Maximum output power of the switch:30 W

PoE in
PoE in standard:IEEE802.3af, IEEE802.3at

PoE in port:5

PoE input:50 - 57V DC, 0.6A

Protection
Port lightning protection: 6 kV

Power lightning protection: No

Electrostatic protection:

- Air discharge: ±8 kV

- Contact discharge: ±6 kV

Performance

Forwarding mode
Store-and-forward

Switching capacity
10 Gbps

Packet forwarding rate
10 Mbps: 14880 pps

100 Mbps: 148800 pps

1000 Mbps: 1488000 pps

Buffer
1 Mb

MAC address table
2 K

Jumbo frame
9 K

Installation method
Desktop mounting: Support

Wall mounting: Not support

Rack mounting: Not support

Environment
Operating temperature: 0°C - 45°C

Storage temperature: -40°C - 70°C

Operating humidity: (10% - 90%), non-condensing

Storage humidity: (5% - 90%), non-condensing

Certificates
CQC, FCC, CE, RoHS

Software specifications

Protocol
CDMA/CD

MAC address learning
Auto-learning, auto-updating

Function
No
