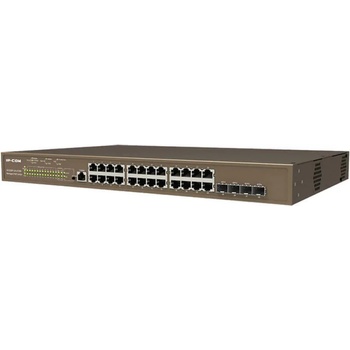

IP-COM G5328P-24-410W

G5328P-24-410W

L3 Managed PoE Switch



• Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at standards


• 24 x 10/100/1000 Base-T Ethernet ports (Data/Power), 4 separate 1000 Base-X SFP ports，1 x Console port


• 16 K MAC address table and MAC address auto-learning


• 12Mb large buffer


• Switching capability: 56Gbps


• Supports abundant services, such as static routing based on IPv4, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet


• Support IMS cloud management and local visualization management

Specs:

LED indicators
One Link/Act or PoE LED indicator for each port

One Link/One Link/Act mode converting LED indicator for each device

One PoE mode converting LED indicator for each device

One PoE Max LED indicator for each device

One Power LED indicator for each device

One SYS LED indicator for each device

Interfaces
24 x 10/100/1000 Base-T Ethernet ports (Data/Power)

4 x 1000 Base-X SFP ports (Data)

Lightning protection
Port: 6kV

Power: 6kV

Forwarding mode
Store-and-forward

Switching capability
56Gbps

Packet forwarding rate
41.7Mpps

Buffer
12Mbit

MAC address table
16K

PoE power supply
Ports 1 to 24 support IEEE 802.3af/at standard PoE power supply1 2 4 5 +, and 3 6 7 8 -

Whole switch consumption
Whole switch consumption:
