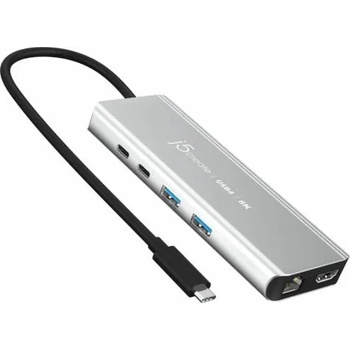

j5create JCD403

This high-performance USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt 4 and older USB specifications. With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.

Supports resolutions up to 8K (Thunderbolt 4, USB4® is required to achieve 8K resolutions)
Compatible with Thunderbolt 4, Thunderbolt 3 or other USB-C® host laptops
Also supports other USB 3.2 host laptops and lower resolution monitors/displays
One 2.5 Gigabit Ethernet port for a high-speed multi-gig network connection
Two SuperSpeed+ USB Type-A 10Gbps port to accommodate your legacy peripherals
One USB-C® downstream port supports up to 10Gbps data transmission

Power Delivery 3.0 offers up to 100W of pass-through charging
Multiple data and display protocols efficiently share bandwidth to offer optimal performance
Wide compatibility with various operating systems and devices
Plug-and-play, no driver installation required

Technical Specifications

Host Connector: USB4® Male
Ports: 1x USB-C® 3.2 Gen2 10Gbps data transmission, 1x USB-C® power delivery 3.0 100W, 2x USB Type-A 3.2 Gen2 10Gbps data transmission, 1x 8K HDMI, 1x RJ45 2.5 Gigabit Ethernet
Max Data Transfer Rate: 10Gbps
Max Display Refresh Rate: 60 Hz @ 3840 x 2160; 144 Hz @ 3840 x 2160 (* Only for DSC host); 30 Hz @ 7680 x 4320; 60 Hz @ 7680 x 4320 (* Only for DSC host)
Max Display Resolution: 7680 x 4320
Power Delivery: Up to 100W via USB-C®
Compatible Networks: 10M/100M/1000M/2.5 Gigabit
Dimensions: 15 x 135 x 51 mm
Weight: 109 g
Colour: Grey

Compatibility

Available Thunderbolt 4, Thunderbolt 3, USB4®, and USB-C® host laptops
GPU and video source: DisplayPort 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz; DisplayPort 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz (DSC = VESA® Display Stream Compression (DSC) Standard. Only available on NVIDIA® GeForce® RTX 20 Series and AMD Radeon RX 6000 Series GPUs or above)
Recommended Graphics Cards: Intel® HD Graphics 620, Intel'® HD Graphics 520 or above
Notes: Macs supports up to 4K 60Hz on an 8K HDMI display
DisplayPort 1.4 is required on graphics card and video source to achieve 8K @ 30
DisplayPort 1.4 and Display Stream Compression (DSC) is required on graphics card and video source to achieve 8K @ 60
A 4K-capable display and cable is required for obtaining the 3840 x 2160 resolution
If connected to a USB 2.0 host port, or if using a USB 2.0 host cable, performance may be limited
The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
If you are using high-powered USB devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
