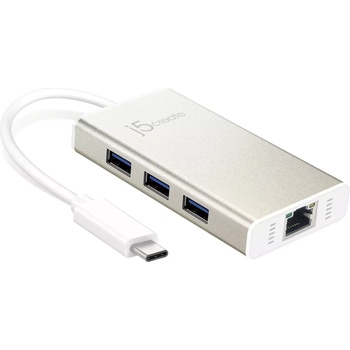

j5create JCH471

J5create JCH471

The JCH471 USB-C® Gigabit Ethernet & HUB Multi Adapter provides extra connectivity for your computer with 5 Gbps transfer speed. Our pocket-sized multi-adapters allow you to add additional USB computer accessories and Gigabit LAN through your USB-C® port.

This Gigabit Ethernet adapter allows you to add networking capabilities to a computer that does not have a Wireless LAN connection. It has an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance, and it is perfect for MacBook Air®, Chromebook, and other laptop and desktop computers with a USB-C® port.

Fast and portable, this unique adapter gives you Ethernet and USB connections all-in-one.

Features

Gigabit Ethernet and 3-Port HUB over a USB-C® connection

5 Gbps transfer rate

Aluminum housing

Compatible with Windows®/Mac®/Linux®/Chrome OS



InterfaceHost Interface USB-C Male connectorEthernet Port RJ-45 Female connector (Gigabit Ethernet)USB Port USB 3.0 Female connector x 3 portsLED Activity and Link LED indicatorsPower Jack DC 5V (3.5 mm OD, 1.35 mm ID)PowerPower Mode

Bus-powered or Self-powered

• If you are using a high-powered USB device, please connect your multi adapter to an AC/DC power adapter to ensure maximum performance.



Functions Ethernet

Transfer Rate:
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x

Modes:

• Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet or Microsoft® wake-up frame
• Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
• Supports Jumbo Frame
• Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload



Physic al SpecificationsDimensions Main body:
43.75 (W) x 90.6 (H) x 18.6 (D) mm
Cable length: 14.5 cmWeight Approximately 58.5 g (including cable)



System Requirements

• Windows ® 10
• macOS® X v10.8 or later
• Linux® Kernel 3. x / 2.6. x
• Available USB-C port
• Driver not required for Chrome OS 3.8 and Linux 3.1x and up
• Note: Drive r is required for Windows 10
