j5create JUD481

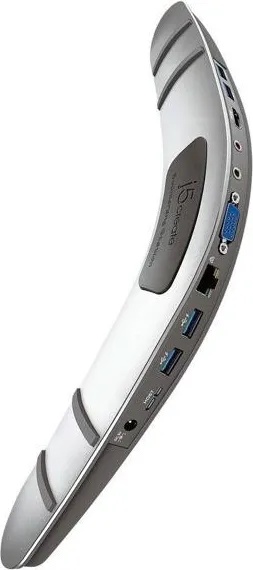

j5create JUD481 USB 3.0 BOOMERANG STATION

Докинг станцията JUD481 USB 3.0 Boomerang ви дава възможност да добавите втори монитор чрез HDMI и VGA конектори.
Дава възможност за бързо свързване на монитор, клавиатура, мишка, Ethernet, високоговорители, микрофон и т. н. на вашия лаптоп с един USB 3.0 кабел.
Това е перфектното решение за разширяване на всеки лаптоп в работна станция с по-големи размери.

PRODUCT FEATURES
Full 1080p Resolution
USB 3.0 Host connection
USB 3.0 charging connection x2
Gigabit Ethernet connection
VGA connection
Audio connection
Microphone connection
HDMI connection
USB 3.0 connection x2
Use up to 6 adapters with Windows
Use up to 4 adapters with Mac
Solid aluminum construction
Simple, easy to use and install

PRODUCT SPECIFICATIONS

Interface

Host Interface
USB 3.0 Micro B Female connector

Cable
USB 3.0 Micro B to Type A

Video Interface
VGA-DB 15 pin Female connector

Standard HDMI Female connector
(with Audio)

Ethernet
RJ-45 Female connector (Gigabit Ethernet)

USB Ports
USB 3.0 Female connector x4
USB 3.0 Battery Charging V. 1.2 Charging port x2
(Two ports that provide additional power of up to 2A for fast-charging an iPad, smartphone, tablet, or similar products)

Audio Jack
Microphone: 3.5 mm stereo audio in
Speaker: 3.5 mm stereo audio out

Power

Power Adapter
Input: AC 100-240V, 50 - 60 Hz
Output: DC 5V/3A (US/JP/TW) or 5V/4A (EU/UK/AU/CN)

Power Mode
Self-Powered

Functions

Display

Video Playback:1080p
Display resolution: 2048 x 1152 @ 32bit
Display Modes: Primary, Extended, Mirror
Display Rotation: 0, 90, 180, 270

Ethernet

Transfer Rate:
1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Modes:

Supports Wake On LAN function, suspend mode and remote wake-up via link-change, Magic Packet, or Microsoft wake-up frame
Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Supports Jumbo Frame
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload

Physical Specifications

Dimensions

Main body:
13.77 (W) x 1.18 (H) x 4.76 (D) in.
35(W) x 3(H) x12.1(D) cm
Cable length:
23.62 in. (60 cm)

Weight
Approximately 0.38 lbs. (0.174 kg)

Housing Material
ABS Plastic

Resolutions and Color Depth

Aspect Ratio Resolution Color Depth
Wide Screen Display
16:9 2048 x 1152 32 bits
16:10 1920 x 1200 32 bits
16:9 1920 x 1080 32 bits
16:10 1680 x 1050 32 bits
16:9 1600 x 900 32 bits
16:10 1440 x 900 32 bits
16:9 1366 x 768 32 bits
16:9 1360 x 768 32 bits
16:10 1280 x 800 32 bits
15:9 1280 x 768 32 bits
16:9 1280 x 720 32 bits
Standard Display
4:3 1600 x 1200 32 bits
4:3 1400 x 1050 32 bits
5:4 1280 x 1024 32 bits
4:3 1280 x 960 32 bits
4:3 1152 x 864 32 bits
4:3 1024 x 768 32 bits
4:3 800 x 600 32 bits
4:3 640 x 480 32 bits

System Requirements

Microsoft Windows 7 or higher (32 bit or 64 bit)
Mac OS X 10.8 or later
Available USB 3.1/3.0/2.0 port (USB 3.1/3.0 recommended)
Minimum Requirements
CPU: Intel Core i3 Dual Core 2.8GHz
RAM: 2 GB memory or higher
Playback Requirements
One 2K (2048 x 1152@60Hz) full-screen video playback
CPU: Intel Core i5 Quad Core
RAM: 4 GB memory or higher
Full Screen Video Playback
Two 2K (2048 x 1152@60Hz) full-screen video playback
CPU: Intel Core i7 Quad Core
RAM: 8 GB memory or higher
Graphics card: Intel HD Graphics 4000/ ATI HD 7xxx/ NVIDIA 5XXM or higher

Note for Video Player:

Windows 8.1/8/7 users: Windows Media Player is recommended for video playback.
Windows 10 users: Movies & TV is recommended for video playback
