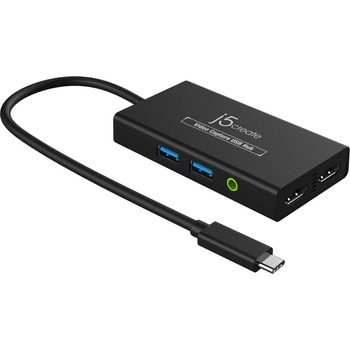

j5create JVA01-N

j5create JVA01

The Video Capture USB Hub is a dual-purpose device that combines an HDMI capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB peripherals and a 4K HDMI display. It also supports upstream charging to keep your laptop powered while in use.



Features:

• UVC Capture

  • HDMI to USB-C® with 60W Power Delivery
  • Power Delivery 3.0 lets you stream live without interruption
  • Ultra-low latency stream through USB-C® 3.2 connection
  • 3.5 mm audio jack allows you to connect headphones or speakers
  • 2 x SuperSpeed USB 5Gbps ports to connect additional peripherals
  • UVC standard - No driver installation required
  • Field production made easy with its compact size
• USB-C® Hub with 4K HDMI

  • Easily add an HDMI video output with resolutions up to 4K @ 30 Hz
  • USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices
  • 2 x USB Type-A ports provide up to 5Gbps transfer speed
  • 3.5 mm audio jack allows you to connect headphones or speakers
  • No driver installation required for Windows® or macOS®



A unique USB-C® hub with video capture function, perfect for mobile live streaming from your phone or laptop





1080p video capture with ultra-low latency





Easily add an HDMI display with resolutions up to 4K





Perfe ct for on-the-go

Its compact and portable size make it a great tool for eld production





Specifications:



Host Connector 1 - USB-C 3.2 Female Power Delivery Up to 60W via USB-CVideo Input 1 - HDMI Female Power Consumption ≤ 450 mAVideo Output 1 - HDMI Female Input Current 3AAudio Input No Input Voltage 20VAudio Output 1 - 3.5mm AUX Output Current 3AVideo Switcher No Output Voltage 20VAudio Switcher No Color BlackPower Source Bus-powered or self-powered (USB-C PD power) Enclosure Type PlasticPorts 1 - USB-C PD 3.0
1 - HDMI Input
1 - 4K HDMI Output
1 - 3.5 mm audio jack
2 - USB Type-A (5Gbps) Cable Length 11.8 in. (30 cm)Supported Resolutions

HDMI In: 3840 x 2160

USB-C display: 3840 x 2160

Capture/Record: 1920 x 1080

Product Height 0.59 in. (15 mm)Maximum Display Refresh Rate 30 Hz Product Width 1.98 in. (50.5 mm)Audio Channel 2.1 via HDMI Product Depth 3.79 in. (96.5 mm)Audio Frequency 48 kHz Product Weight 2.43 oz (69g)Microphone N/A Storage Temperature 14 to 149°F (-10 to 65°C)Headset 2.1 Stereo Storage Humidity < 85% non-condensingCompressionUSB 2.0: MJPEG Operation Temperature 32 to 104°F (0 to 40°C)Encode Format MJPEG Operation Humidity < 80% non-condensing
