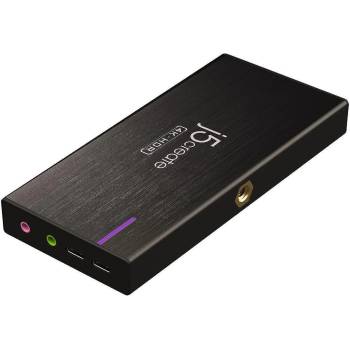

j5create JVA14 4K - Game Кепчер (JVA14)

The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation 4 / 5, Xbox Series X / S, Xbox One X / S. It is fully compatible with OBS and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.

audio input 1 - 3.5mm AUX
audio output 1 - 3.5mm AUX

1 - USB-C® 3.2 Gen 1
1 - HDMI Input
1 - HDMI Output
1 - Audio Out (3.5 mm)
1 - Mic In (3.5 mm)
power source Bus-powered
video input
1 - HDMI Female
video output
1 - HDMI Female

audio channel 2.1 via HDMI
audio frequency 48 kHz
USB 3.0: RGB / YUV4:2:2 / YUV4:2:0
USB 2.0: YUV4:2:0
hdr supported Yes
headset 2.1 Stereo
maximum capture capability
USB 3.0: 3840 x 2160 @ 30
USB 2.0: 1280 x 720 @ 30
maximum capture refresh rate
4K30 FPS, 2K60 FPS, 1080p120 FPS
maximum capture resolution
3840 x 2160
maximum passthrough resolution
3840 x 2160
max passthrough refresh rate
4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR
microphone
Stereo microphone supported
24-bit sigma-delta ADC
power consumption ≤900 mA
power delivery 60W via USB-C®

cable length 3.3 ft (1m)
color Black
enclosure type Aluminum
operating humidity
