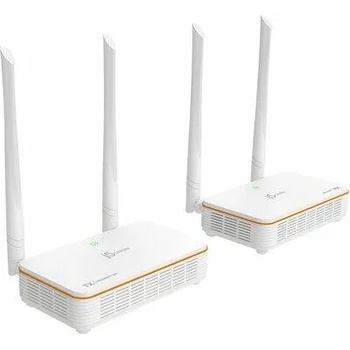

j5create JVAW53-N

Enjoy your favorite videos in HD anywhere you wish without costly cable installation and clutter with this HDMI extender kit. It extends audio and video signals up to 200 ft/60m with nearly zero delays (less than 0.06s/60ms), offering the ultimate flexibility when it comes to placing your source device and display wherever you prefer. Compliant with HDMI 1.3, HDCP 1.2 and DVI 1.0, the extender supports up to 1080p60 video resolution, stereo digital audio and is compatible with all HDMI enabled devices including DVD/ Blu-ray players, laptops, game consoles, and more. With its built-in infrared signal, the IR extender cable (included) gives you the ability to control the source device at the display’s location with its original remote (play, pause, fast forward, etc. ).

Host Connector

1 - HDMI Female Input (Transmitter)
1 - HDMI Female Output (Receiver)

Power Source: Self-Powered

LED Indicator:

Red: power on
Orange: system booting
Green: system ready

Ports:

1 - HDMI Female
1 - 5V DC jack 3.5 mm
1 - IR port

IR Yes

HDMI Compliance HDMI v1.3
HDCP Compliance HDCP 1.2
Audio Channel 2.1 via HDMI
Display Output Supported Resolutions

1920 x 1080
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768 / 720
1024 x 768 / 576
852 x 480
800 x 600
768 x 576
720 x 576
704 x 576
640 x 480

RF Output Power +15 dBm +/- 1 dBm
Security (Encryption) 128/256-bit AES based encryption and WPA2
IR Return Frequency 30 - 60 kHz
ESD Protection Yes
air-gap discharge: ± 8 KV
contact discharge: ± 4 KV
OVP Protection Up to DC 20 volts
Standard IEEE 802.11ac
Frequency 5 GHz Band I, Band IV, CE only Band I
Range Up to 60 meters
Channel Width 0 MHz or 40 MHz or 80 MHz
Antenna Type Dual external antenna (+5 dBi)
Color White, Orange
Enclosure Type ABS Plastic
HDMI cable ≈ 3.28 ft ( 39.37 in)
IR blaster cable ≈ 4.75 ft (57 in )
IR receiver cable ≈ 4.75 ft (57 in )
DC adapter ≈ 4.58 ft (54.96 in)
Product Height 1.31 in (33.5mm)
Product Width 5.31 in (135mm)
Product Depth 2.99 in (76mm)
Product Weight 5.30 oz (150.5g)
Storage Temperature -40 to +158 °F (-40 to +70 °C)
Storage Humidity < 80% non-condensing
Operating Temperature +32 to +104 °F (0 to +40 °C)
Operating Humidity < 80% non-condensing
