JBL HDI 3800

HDI-3800

Tripl e 8-inch (200mm) 2.5-way Floorstanding Loudspeaker

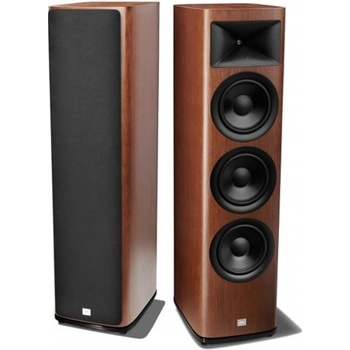

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3800 is the flagship of the JBL HDI Series. This floorstanding loudspeaker features a 2.5-way design with patented High-Definition Imaging (HDI) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 8-inch (200mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3800 is the flagship of the JBL HDI Series. This floorstanding loudspeaker features a 2.5-way design with patented High-Definition Imaging (HDI) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 8-inch (200mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

Specifications

Enclosure Type

Bass-reflex design with rear-firing port

High Frequency Transducer

1-inch (25mm) Teonex compression driver

Low / Mid Frequency Transducers

Three 8-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers

Crossover Frequency

800Hz, 1800Hz

Sensitivity (2.83V @ 1M)

92dB

Nominal Impedance

4 Ohm

Recommended Amplifier Power

25W – 300W

Frequency Response

37Hz – 30kHz (-6dB)

Dimensions (H x W x D)

43.33 x 11.81 x 16.45 (1100.5 x 300.0 x 417.8mm)

Net Weight

83.78 lbs (38.00kg)
