- Graphics cards up to a maximum length of 185 mm
- Power supply via SFX power supply
- CPU cooler up to 70mm height
- A 140mm fan pre-installed in the front
- Hard drive cage for 1x 2.5 SSD and 5x 3.5 HDDs
- I/O panel: 1x USB-C, 1x USB 3.0 Type A, 1x 3.5 mm jack plug (Audio + Mic)

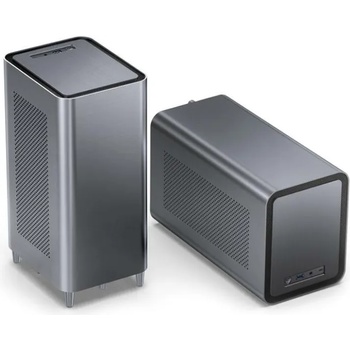

The Jonsbo N1 Mini-ITX case in detail
A small computer for cloud storage or home office systems. The Jonsbo N1 is the small but fine solution for functional systems. It accommodates a 2.5-inch SSD and five 3.5-inch HDDs. It is changeable and space-saving, because it can be laid down or placed upright.
Organization and Hardware
The Jonsbo N1 is a Mini-ITX case and only compatible for these Formactor motherboard sizes. Only small 1-slot graphics cards with a length of 185mm fit inside. The housing can be completely removed to facilitate installation. Important! There is not much space in the interior. Graphics cards only fit in with low-profile brackets. It is advisable to buy a CPU chipset with a graphics unit.
The power supply of the mini system is ensured by a power supply in the compact SFX standard. The CPU cooler, on the other hand, must be a maximum of 70 mm high. For air circulation, a 140mm fan is permanently installed in the front and of course included in the scope of delivery.
Compact design for home use
If you are looking for a small computer for small basic tasks such as office programs or want to back up in your own cloud storage on site, the Jonsbo N1 is a practical solution. The design is space-saving, clever and offers capacity five 3.5-inch HDDs in a hard drive cage. A 2.5-inch data carrier can be mounted above the power supply.
The functionality of the Jonsbo N1 is very important. Its delicate dimensions of 170 mm x 217 mm x 354 mm (W x H x D) fit into any home and blend quietly into any setup or look in their high-quality aluminum housing. If you still can't find a good place where to put it, put it up. No matter how, the I/O panel with a USB-C, USB 3.0 Type A or Audio 3.5 mm jack plug remains freely accessible in any position .
Specifications:
- Dimensions: 170mm x 217mm x 354mm (W x H x D)
- Materials: aluminum, steel
- Weight: 3.8kg
-Colour: Grey
- Form factor motherboard: Mini-ITX
- Fan (preinstalled):
- Front: 140mm
Drive bays:
- 1 x 2.5 inch
- 5x 3.5 inches
- Power supply: SFX, max. 150mm
- Graphics card: max. 185 mm length (low profile)
- Expansion slots: 1 (single slot, low profile)
I/O panel:
- 1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
- 1x USB 3.0 (Type C, USB 3.2 Gen 1, max. 5 Gbit/s)
- 1x 3.5 mm jack plug (mic and headphones)
- 1x power switch
