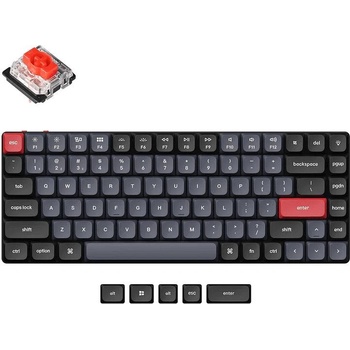

Keychron K3 Pro QMK/VIA Hot-Swappable Gateron Low Profile Red Switch (K3P-H1)

The Keychron K3 Pro is the world’s first low profile wireless mechanical keyboard with QMK/VIA enabled for endless possibilities.

An excellent solution for multitasking. Connects the K3 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows.

You can also enjoy a USB Type-C wired connection with 1000 Hz polling rate which is engineered for the competitive game.

Offers a Mac layout while still being compatible with Windows, the K3 Pro is one of the few on the market that has the same multimedia and function key functions as Apple keyboards for Mac users, but with more tactile feedback.

You can even configure different keymaps for both Mac and Windows devices. While VIA software is compatible with macOS, Windows, and Linux. Includes keycaps for both macOS and Windows (and additional esc and enter keys) to allow you to switch between operating systems with ease.

Designed for premium type feeling, the K3 Pro comes with our unique double-shot PBT keycaps that made of durable non-backlight shine through PBT material with excellent oil resistance for long-term use.

Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option), and 14 types of backlight settings on the White Backlight version. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.

SPECIFICATION


Number of Keys: 84 (75%)
Switches: Gateron low-profile mechanical
Switch Face: North-facing
Number of Multimedia Keys: 12
Frame Material: ABS+Aluminum frame
Keycap Material: Low-profile double-shot PBT
Low-profile dye-sublimated PBT (Special Edition)
Layout: ANSI
Polling Rate (Wired Mode): 1000Hz
Polling Rate (Wireless Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes

*The K3 Pro is currently compatible with Gateron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.


CONNECTIVITY AND POWER

Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 1550 mAh rechargeable li-polymer battery
BT Working Time (Backlit off): Up to 130 hours (Lab test result may vary by actual use)
BT Working Time (RGB): Up to 68 hours (Lowest brightness)
Connection: Bluetooth and Type-C cable
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K3 Pro
Compatible System: macOS/Windows/Linux

PHYSICAL UNIT

Dimension: 306 x 116 mm (12.04 x 4.56")
Weight: 525 g / 1.16 lbs
Height without keycap (front): 11 mm (0.43")
Height without keycap (rear): 15 mm (0.59")
Height incl. keycap (front): 17 mm (0.66")
Height incl. keycap (rear): 22 mm (0.86")
Typing Angle: 2.5º, 4.2º and 6.5º
MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment: -10 to 50℃
