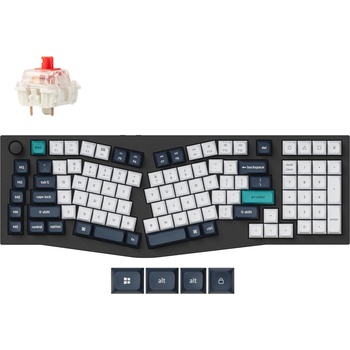

Keychron Q13 Max (Q13M-M1)

Keychron Q13  Max

Meet the Keychron Q13 Max, a full-metal wireless custom mechanical keyboard featuring a unique 96% Alice layout. Upgraded with a 2.4 GHz wireless connection at a 1000 Hz polling rate and Bluetooth 5.2, it elevates the typing experience further. Thoughtfully designed with multiple layers of acoustic foam, it ensures premium sound quality with every keystroke.

Paired with many other premium features, such as the double-gasket design, PBT keycaps, screw-in stabilizers, and more, the Keychron Q13 Max promises an unparalleled typing journey that transcends expectations.



A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q13 Max.

Significantly Enhanced Acoustic Foams

Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.

Easy Assemble

We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.



Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate.  This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.



KSA Double-Shot PBT Keycaps

To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.



Hot-Swappable

Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q13 Max with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc. ) without soldering required. You can customize your own typing experience in seconds.

Specifications



Width 156.85 mmLength 447.29 mmHeight without keycap(front) 20.30 mm Height without keycap(rear) 31.82 mm
 Height incl. keycap(front) 32.84 mmHeight incl. keycap(rear) 47.93 mmFeet Height 2 mmAngle 5°Weight 2405 g ± 10 g (Fully Assembled version)Body Material Full CNC machined aluminumPlate Material PCKeycap KSA double-shot PBT keycaps, not shine-through (Fully Assembled version)Switch Gateron Jupiter (Fully Assembled version)
 Stabilizer Screw-in PCB stabilizerMCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)Battery 4000 mAh Rechargeable li-polymer batteryBT Working Time (Backlit off) Up to 300 hours (Lab test result may vary by actual use)
 BT Working Time (RGB) Up to 100 hours (Lowest brightness)Bluetooth Version 5.2
 Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. Compatible System macOS/Windows/LinuxPolling Rate 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)N-Key Rollover (NKRO) Yes for both wireless and wired modesConnectivity 2.4 GHz / Bluetooth / Type-C wiredBacklight South-facing RGB LEDOperating Environment -10 to 50℃Bluetooth Device name
  Keychron Q13 Max
