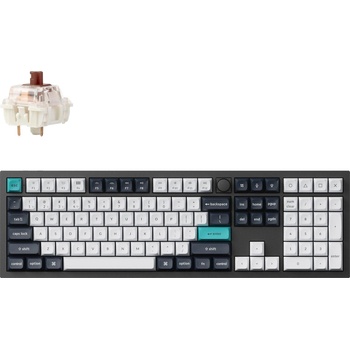

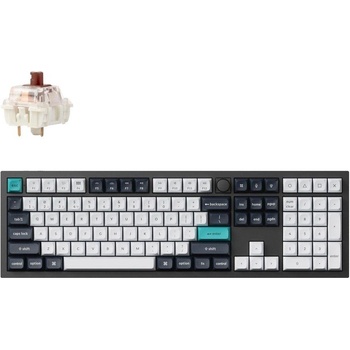

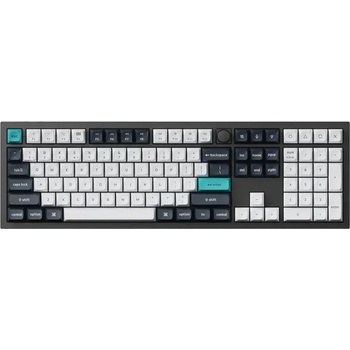

Keychron Q6 MAX Gateron Jupiter Brown Switch Q6M-M3

Keychron Q6 Max

Introducing the Keychron Q6 Max, a full-metal QMK/VIA wireless customized mechanical keyboard with a 100% full-size layout and support for 2.4 GHz wireless, Bluetooth 5.1, and Type-C wired connectivity. The combination of reinforced multi-layer acoustic foam and double-gasket design provides an incredibly satisfying typing experience while ensuring a superior sound quality.

Double-Shot PBT Keycaps

The double-shot PBT keycaps of the Q6 Max provide excellent oil resistance and prevent the legends from fading out. Additionally, the keyboard offers two different keycap options to meet varying preferences and needs.

KSA Keycaps

OSA Side-Printed Shine-Through Keycaps

Adopting an ergonomic design and classic appearance, it's ideal for standard typing situations.

Less distracting during use and provides a fantastic backlight shine-through effect.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q6 Max via Bluetooth 5.1 to three devices.

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate.  This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q6 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Hot-Swappable

Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q6 Max with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc. ) without soldering required. You can customize your own typing experience in seconds.

An Epic Core Inside The Keyboard

A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

South-Facing RGB

Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

Specifications

Width 137 mmLength 446 mmFront Height 20.1 mm (without keycaps)Back Height 32.6 mm (without keycaps)Feet Height 2.7 mmAngle 5.2°Weight 2184 g ± 10 g (Fully Assembled version)Body Material AluminumPlate Material PCKeycap KSA double-shot PBT keycaps, not shine-through (Fully Assembled version) / OSA side-printed double-shot PBT keycaps (Fully Assembled version) Switch Gateron Jupiter (Fully Assembled version)
 Stabilizer Screw-in PCB stabilizerBacklight South-facing RGB LED
 Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)Polling Rate 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)N-Key Rollover (NKRO) Yes for both wireless and wired modesBattery 4000 mAh Rechargeable li-polymer batteryWireless Working Time (Backlit off) Up to 180 hours (Lab test result may vary by actual use)
 Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)Bluetooth Version 5.1
 Compatible System macOS/Windows/LinuxConnectivity 2.4 GHz / Bluetooth / Type-C wiredBluetooth Device Name Keychron Q6 MaxOperating Environment -10 to 50℃
