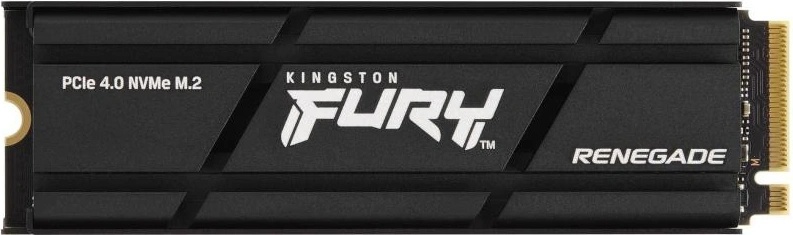

Kingston FURY Renegade with Heatsink 1TB M.2 (SFYRSK/1000G)

Kingston FURY Renegade PCIe 4.0 NVMe M. 2 SSD provides cutting-edge performance in high capacities for gaming and hardware enthusiasts seeking extreme performance for PC builds and upgrades. By leveraging the latest Gen 4x4 NVMe controller and 3D TLC NAND, Kingston FURY Renegade SSD offers blazing speeds of up to 7,300/7,000MB/s read/write and up to 1,000, 000 IOPS for amazing consistency and exceptional gaming experience. From game and application loading times to streaming and capturing, give your system a boost in overall responsiveness.
With better heat management comes better stability during peak performance. The slim M. 2 combined with a low profile, graphene aluminium heat spreader is optimised for intense usage in gaming laptops and desktops. The optional heatsink model delivers an additional layer of thermal dispersion so when the game heats up, your PS5 console stays cool. Kingston FURY Renegade SSD matches the top-tier performance of the Kingston FURY Renegade memory line to produce the ultimate team that will keep you at the top of your game.


Form factor
M. 2 2280

Interface
PCIe 4.0 x4 NVMe

Capacities2
500GB, 1TB, 2TB, 4TB

Controller
Phison E18

NAND
3D TLC

DRAM Cache
Yes

Sequential read/write1
500GB – 7,300/3,900MB/s
1TB – 7,300/6,000MB/s
2TB – 7,300/7,000MB/s
4TB – 7,300/7,000MB/s

Random 4K read/write1
500GB – up to 450,000/900,000 IOPS
1TB – up to 900,000/1,000, 000 IOPS
2TB – up to 1,000, 000/1,000, 000 IOPS
4TB – up to 1,000, 000/1,000, 000 IOPS

Total Bytes Written (TBW)3
500GB – 500TBW
1TB – 1.0PBW
2TB – 2.0PBW
4TB – 4.0PBW

Power consumption
500GB – 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write
1TB – 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write
2TB – 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write
4TB – 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write

Storage temperature
-40°C~85°C

Operating Tempetemperaturerature
0°C~70°C

Dimensions
Heat spreader:
80mm x 22mm x 2.21mm (500GB-1TB)
80mm x 22mm x 3.5mm (2TB-4TB)
Heatsink:
80mm x 23.67mm x 10.5mm

Weight
Heat spreader:
500GB-1TB – 7g
2TB-4TB – 9.7g
Heatsink:
1TB – 32.1g
2TB-4TB – 34.9g

Vibration operating
2.17G peak (7-800Hz)

Vibration non-operating
20G peak (20-1000Hz)

MTBF
2,000, 000 hours

Warranty/Support4
Limited 5-year warranty with free technical support
