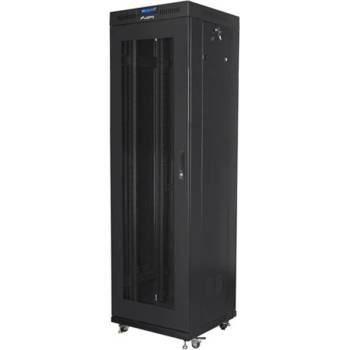

Lanberg Комуникационен шкаф Lanberg FF01-6642-23BL, 19", 42U, 212.7 x 60 x 60 cm, товароносимост до 1200кг, термостат, черен (FF01-6642-23BL)

The cabinet's construction is made of high-quality rolled steel, providing excellent design and craftsmanship. It features adjustable depth of vertical mounting rails, allowing for customization to accommodate various types of equipment. It is equipped with grounding accessories, including a cable and nuts. The grounding pins are present in three parts of the cabinet - frame, front doors, and rear doors, ensuring comprehensive grounding of your installations. The Lanberg cabinet also includes lockable top and bottom panels with blanking panels, enabling convenient cable entry and concealment. This ensures a neat and well-organized installation, minimizing cable clutter. Additionally, the cabinet is equipped with perforated front and rear doors. It can be installed with the option for right or left-side door placement. The side panels are removable (with locks included), and the rear doors are made of solid steel with a lock. The cabinet also features a front-mounted LCD display with a thermostat function, displaying essential information such as the internal temperature, current time, and fan status.

Specifications

Type of cabinet
Free standing

Size
19"

ICT height
42 U

Assembly type
Self-assembly

Working depth
520 mm

Front door type
Perforation

Rear door type
Perforation

Door type
Single-leaf

Maximum front door opening angle
215 °

Maximum static load
1200 kg

Slot amount for fans
2

Number of vertical rails
4

Thermostat
Yes

LCD panel
Yes

Colour
Black

RAL color
RAL9004

Weatherproof rating
IP20

Front door thickness
1.2 mm

Rear door thickness
1.2 mm

Upper & lower panel thickness
1.5 mm

Side panel thickness
1.2 mm

Mounting rails thickness
2 mm

Frame thickness
1.5 mm

Other elements sheet thickness
1.2 mm

Depth
600 mm
Width
600 mm
Height
2127 mm

Height without casters
2020 mm

Weight
92 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

Grounding Details
Back door, Frame, Front door
