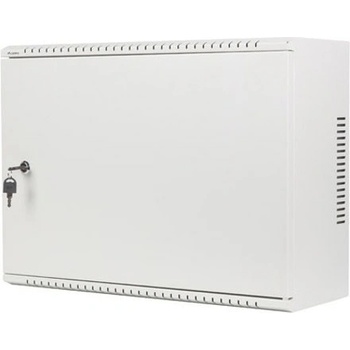

Lanberg Комуникационен шкаф Lanberg WAF1-5203-04-00S, 19", 4U, 40 x 20 x 54 cm, товароносимост до 60кг, сребрист (WAF1-5203-04-00S)

Small closet, big possibilities:
Our WAF1 cabinet guarantees the security of your equipment. It features two 4U high and 3U deep utility rails that allow you to mount your equipment both vertically and horizontally. This gives you complete freedom in the configuration and placement of your IT equipment, customizing the cabinet to your needs. An ideal solution for those who need flexibility in organizing their equipment.

In addition, our cabinet is equipped with double-sided opening doors, which make it easier to access the interior and handle equipment. With such practical solution cabinet makes maintenance and management of IT equipment much easier.

Vents:
This ready-to-use WAF1 cabinet is not only an ergonomic and aesthetically pleasing solution but also provides adequate air circulation. The module's top and bottom panels and sidewalls feature ventilation holes that help keep your IT equipment at the right temperature.

Specifications

Type of cabinet
Wall mount

ICT depth
3 U

Size
19"

ICT height
4 U

Assembly type
Assembled

Working depth
143 mm

Working height
360 mm

Front door type
Metal

Door type
Single-leaf

Maximum front door opening angle
220 °

Maximum static load
60 kg

Number of vertical rails
2

Number of horizontal rails
2

Thermostat
No

LCD panel
No

Colour
Black

RAL color
RAL9004

Weatherproof rating
IP20

Front door thickness
1 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.5 mm

Frame thickness
1.2 mm

Other elements sheet thickness
1 mm

Depth
200 mm

Width
540 mm

Height
400 mm

Weight
9.3 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

Grounding Details
Bottom panel, Front door
