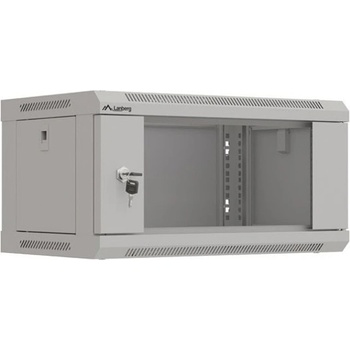

Lanberg Комуникационен шкаф Lanberg WF03-5304-10S, 19", 4U, 28.1 x 35 x 54 cm, товароносимост до 60кг, сив (WF03-5304-10S)
Excellent ventilation and room for a fan: To ensure adequate airflow, there are ventilation holes in the top and bottom panels. In addition, the cabinet has a special place for mounting...
57,59 €|112,64 лв.*
В рамките на 3 дни
Вид:
Най-евтини оферти (1)
Lanberg Комуникационен шкаф Lanberg WF03-5304-10S, 19", 4U, 28.1 x 35 x 54 cm, товароносимост до 60кг, сив (WF03-5304-10S)
Комуникационен шкаф Lanberg WF03-5304-10S, 19", 4U, 28.1 x 35 x 54 cm, товароносимост до 60кг, сив (WF03-5304-10S)
Комуникационен шкаф Lanberg WF03-5304-10S, 19", 4U, 28.1 x 35 x 54 cm, товароносимост до 60кг, сив (WF03-5304-10S)
Описание на продукта
Excellent ventilation and room for a fan: To ensure adequate airflow, there are ventilation holes in the top and bottom panels. In addition, the cabinet has a special place for mounting...
Параметри на продукта
Производител
Lanberg
Етикет
Lanberg
Параметри на продукта
Производител
Lanberg
Етикет
Lanberg
Описание на продукта
Excellent ventilation and room for a fan:
To ensure adequate airflow, there are ventilation holes in the top and bottom panels. In addition, the cabinet has a special place for mounting a 120×120 mm fan, which significantly improves air circulation and reduces the risk of overheating equipment. Thanks to this, WF03 cabinets ensure optimal working conditions for the equipment installed in them and their long service life.
Specifications
Type of cabinet
Wall mount
Size
19"
ICT height
4 U
Assembly type
Self-assembly
Working depth
305 mm
Front door type
Temper glass
Door type
Single-leaf
Maximum front door opening angle
220 °
Maximum static load
60 kg
Slot amount for fans
2
Number of vertical rails
4
Colour
Gray
RAL color
RAL7035
Weatherproof rating
IP20
Front door thickness
5 mm
Upper & lower panel thickness
1 mm
Side panel thickness
1 mm
Mounting rails thickness
1.5 mm
Frame thickness
1.2 mm
Other elements sheet thickness
1 mm
Depth
350 mm
Width
540 mm
Height
281 mm
Weight
9.6 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Grounding Details
Bottom panel, Front door
To ensure adequate airflow, there are ventilation holes in the top and bottom panels. In addition, the cabinet has a special place for mounting a 120×120 mm fan, which significantly improves air circulation and reduces the risk of overheating equipment. Thanks to this, WF03 cabinets ensure optimal working conditions for the equipment installed in them and their long service life.
Specifications
Type of cabinet
Wall mount
Size
19"
ICT height
4 U
Assembly type
Self-assembly
Working depth
305 mm
Front door type
Temper glass
Door type
Single-leaf
Maximum front door opening angle
220 °
Maximum static load
60 kg
Slot amount for fans
2
Number of vertical rails
4
Colour
Gray
RAL color
RAL7035
Weatherproof rating
IP20
Front door thickness
5 mm
Upper & lower panel thickness
1 mm
Side panel thickness
1 mm
Mounting rails thickness
1.5 mm
Frame thickness
1.2 mm
Other elements sheet thickness
1 mm
Depth
350 mm
Width
540 mm
Height
281 mm
Weight
9.6 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Grounding Details
Bottom panel, Front door
