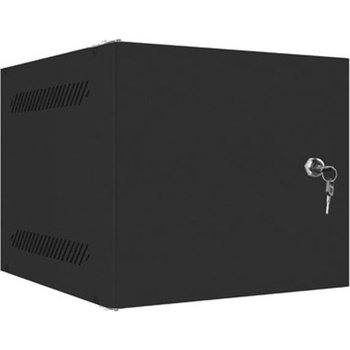

Lanberg Комуникационен шкаф Lanberg WF10-2304-00B, 10", 4U, 280x310mm, товароносимост 20кг, черен (WF10-2304-00B)

Lanberg’s compact 10" wall-mount cabinet WF10-2304-00B is a great solution designed for network construction, with cabling and equipment in size of 10" in mind, where maximum combined load capacity does not exceed 20kg. This particular product can be used for computer network systems installations / implementations within small and medium-sized companies (SMB). On top of that, cabinet also works well, as an element of low voltage installations, such as cable TV networks, security (various alarms) and access control systems, as well as, CCTV and IP surveillance systems.

Due to the appropriate design, the cabinet allows easy, self-assembly. This product is characterized by its IP20 rating, glass front door, equipped with a lock (included with the product) with the possibility of door rotation up to 180°. Moreover, you can put the wiring through cable entry on top and bottom panels (with blank entry panels).

This networking equipment is made of high quality rolled steel, and due to the self-assembly (flat pack) construction, consisting of a one single flat package, transport is much easier. Lastly, the packaging includes additional accessories for wall installation, M6 screws and entry blank panels.

Product features:
- Manufacturer: Lanberg,
- Manufacturer's code: WF10-2304-00B,
- Cabinet type: Wall-mount,
- Color: Black RAL9004,
- Height: 4U,
- Cabinet dimensions (W x D x H): 280 x 310 x 247 mm,
- Height (top panel - bottom panel): 240 mm,
- Height (top panel - ground including screws): 247 mm,
- Packaging dimensions (W x D x H): 30 x 34 x 8.3 cm,
- Loading capacity: up to 20 KG,
- Tightness class: IP20,
- Door type: Front - Metal,
- Compliance with standards: ANSI / EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High-quality rolled steel, powder coated,
- Ventilation hole: Yes, 120mm, 110V or 230V,
- Front door thickness: 1.0 mm,
- Sheet thickness: Mounting profile - 1.0mm, the rest 0.8 - 1.5mm,
- Cable entry panels: Top, Bottom,
- Accessories included: Elements for wall installation, front door lock, M6 screws.





Width 280 mmHeight 247 mmColour BlackStandard ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, IEC297-2:1982Size 10"Type of cabinet Wall mountICT Height 4 UDepth 310 mmMaximum static load 20 kgFront door thickness 1 mmUpper & lower panel thickness 1 mmFront door types MetalIncluded Accessories M6 screws, Front lockWeight 4.56 kgWorking depth 238 mmSlot amount for fans 1Side panel thickness 1 mmMounting rails thickness 1.4 mmOther elements sheet thickness 1.1 mmWeatherproof rating IP20Assembly type Self-assembly
