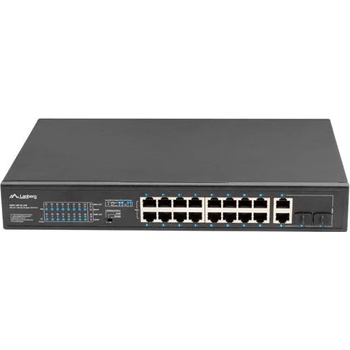

Lanberg RSFE-16P-2C-250

Specifications

Number of Ethernet ports
18

Number of fiber ports
2

Number of POE ports
16

Ports specification
16x 100BASE-T 802.3af / 802.3at PoE+, 2x RJ45 port (1 Gbps) or 2x SFP slot (1 Gbps) - Combo UpLink

Maxiumum network link speed
1 Gbps

Network Link Type
Ethernet, Fiber

Number of LAN ports
18

Size
19"

Specialized
Industrial, Rack

Type of casing
Rack

Weatherproof rating
IP20

PoE support
Yes

PoE standards
802.3af, 802.3at

PoE power supply type
PoE, PoE+

Power
250 W

Total budget for PoE
250 W

Maximum power per port
30 W

Buffer
4 Mbit

Bandwith
7.2 Gbps

MAC address table
16K

Cooling
Active - fan

Power Requirements
100~240V AC

Power consumption
250 W

Surge protection
6 kV

Plug & Play
Yes

Work signal
LED

Wired standards
IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control)

Functions
Extend mode, Intelligent PoE port disconnection function, VLAN

Material
Metal

Software
No

ICT height
1 U

Length
208 mm

Width
320 mm

Height
45 mm

Weight
1.9 kg

Environment temperature
5 - 55 °C

Environment humidity
0 - 80 %
