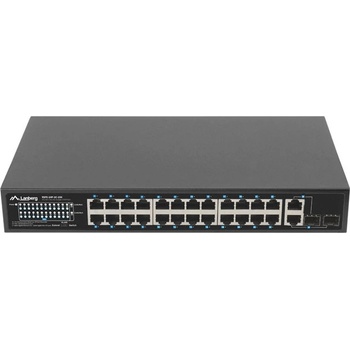

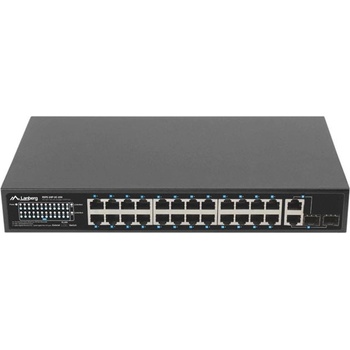

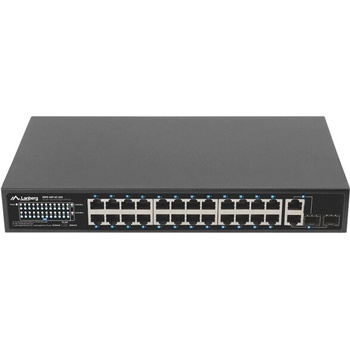

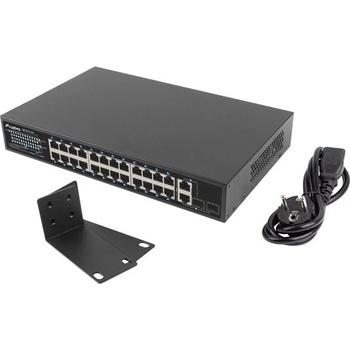

Lanberg RSFE-24P-2C-250

A NO-COMPROMISE SOLUTION - REAL POE BUDGET: 250 IN.
The switch is equipped with a total of 28 ports, including 24 PoE+ (Fast Ethernet) and 2 Uplink (Combo Gigabit) ports. Thoughtful design and attention to component quality provides the user with up to 250 W of total real power for end devices, which means the ability to connect simultaneously:
- 16 IEEE 802.3af devices (max. 15 W per port) or 8 IEEE 802.3at devices (max. 30 W per port).

The remaining 2 ports (Uplink) are dedicated to exchange data traffic between the 24 PoE+ ports and external devices. In the case of monitoring/control systems, this is particularly useful, as it allows the user to rip the recording from the cameras to the DVR while sharing the stream further (on the second port), e. g. in the local network or on the Internet.

Specifications

Number of Ethernet ports
26

Number of fiber ports
2

Number of POE ports
24

Ports specification
24x 100BASE-T 802.3af/802.3at PoE+, 2x RJ45 port (1 Gbps) or 2x SFP slot (1 Gbps) - Combo UpLink

Maxiumum network link speed
1 Gbps

Network Link Type
Ethernet, Fiber

Management
Unmanaged

Size
19"

Specialized
Industrial, Rack

Type of casing
Rack 19"

Weatherproof rating
IP20

Chipset
Realtek - RTL8326B

PoE support
Yes

PoE standards
802.3af, 802.3at

PoE power supply type
PoE, PoE+

Total budget for PoE
250 W

Maximum power per port
30 W

Buffer
4 Mbit

Bandwith
8.8 Gbps

MAC address table
8K

Cooling
Fan, Vents

Power Requirements
100~240V AC

Surge protection
4 kV

Compatible with Jumbo Frames
9216 (B)

Packets per second
6.55 pps

IGMP snooping
No

IGMP proxy
No

Plug & Play
Yes

Command line
No

STP loop protection
Not

Work signal
LED

Wired standards
IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3z 1000Base-LX/SX

Functions
Extend mode, Intelligent PoE port disconnection function, VLAN

Material
Metal

Software
No

ICT height
1 U

Length
207 mm

Width
320 mm

Height
44 mm

Weight
2.5 kg

Environment temperature
5 - 55 °C

Environment humidity
0 - 80 %
