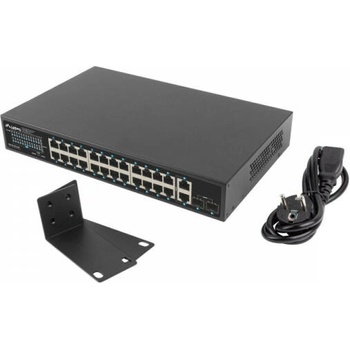

Lanberg RSGE-24P-2GE-2S-360

Specifications

Number of Ethernet ports
26

Number of fiber ports
2

Number of POE ports
24

Ports specification
24x 1000BASE-TX 802.3af/802.3at PoE+, 2x 1000 Mbps Uplink, 2x 1000BASE-X SFP

Maxiumum network link speed
1 Gbps

Network Link Type
Ethernet, Fiber

Management
Unmanaged

Size
19"

Specialized
Industrial, Rack

Type of casing
Rack

Weatherproof rating
IP20

Chipset
RTL8382L

PoE support
Yes

PoE standards
802.3af, 802.3at

PoE power supply type
PoE, PoE+

Total budget for PoE
360 W

Maximum power per port
30 W

Bandwith
56 Gbps

MAC address table
8K

Cooling
Active - fan

Power Requirements
100~240V AC

Power consumption
20 W

Surge protection
4 kV

Work signal
LED

Wired standards
IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control), IEEE 802.3z 1000Base-LX/SX

Functions
Extend mode, Intelligent PoE port disconnection function

Material
Metal

Software
No

ICT height
1 U

Length
320 mm

Width
207 mm

Height
45 mm

Weight
2.26 kg

Environment temperature
5 - 40 °C

Environment humidity
0 - 80 %
