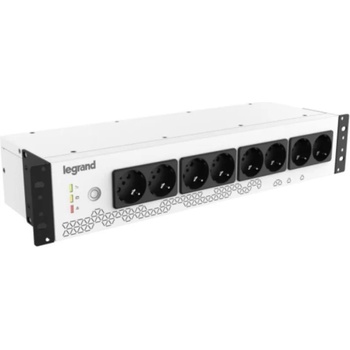

Legrand Keor Multiplug 800VA (310332)

Legrand Keor PDU

Keor PDU is a new UPS specifically designed for installation in 19-inch panels and racks.
Its PDU style design with ultra compact dimensions provides 8 sockets with up to 15 minute autonomy in just 2 rack units.

• 3 LEDs to monitor UPS status in real-time
• Low energy consumption
• Economically advantageous solution
• More sockets with complete protection
• Front installation and maintenance
• Silent operations
• Less space occupied inside the cabinet
• Lower installation weight
• Wiring and installation simplicity

TECHNICAL FEATURES

General features
Nominal power (VA) 800
Active power (W) 480
Technology Off-Line VFD
Waveform Simulated sinewave

Input
Input Socket 1 IEC 10A
Nominal voltage (V) 230
Voltage range (V) 180 - 270
Frequency (Hz) 50 - 60 ± 5Hz

Output
Outlets type:
- IEC Version Backup: 8*C13
- German-Italian Version Backup: 8*CEE 7/3
- French Version Backup: 8*CEE 7/5
Voltage (V) 230 ± 10%
Frequency (Hz) 50 - 60 ± 1Hz

Protections
Full protection Deep Discharge, Over-Load and Short-
Circuit Protection
Type Fuse

Batteries
Number of batteries 1
Battery series Type / Voltage VRLA 9 Ah

Communication and Management
Interface LED bar (green / orange / red)
USB HID Type B
Alarms Visual (LED bar), Audible (buzzer)

Mechanical Features
Measurements W x D x H (mm) 19" x 150mm x 2U
Net Weight (kg) 5,5

Environmental Conditions
Operating temperature (°C) 0 ̴ 40
Relative humidity (%) < 95 (without condensing)
Noise level (dB) ≤ 40

Certifications
Standards and marks EN 62040-1, EN 62040-2, CE
