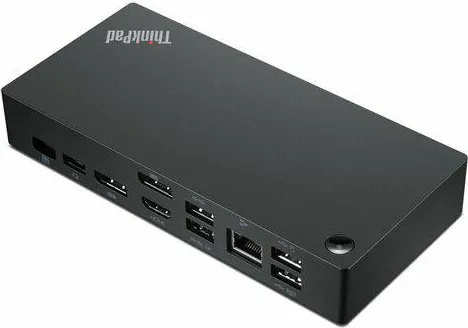

Lenovo 40AY0090EU

LENOVO ThinkPad Universal USB-C Dock - EU





Manufacturer
LENOVO

Manufacturer Part No
40AY0090EU



Marketing Description

Lenovo understands that modern business depends on a wide variety of PCs and even brands to meet their business needs. To make this easier Lenovo USB-C dock is compatible with Lenovo notebooks as well as with notebooks from other manufacturers.

Product Features

Broad compatibilityLenovo Docking station is compatible with Lenovo and non-Lenovo notebooks to expand data, power, and video.
One connection, no limitationsThink of all the time you'd save if you could connect all your peripherals at once, transfer USB data at 10 Gbps speeds, have access to a stable, stress-free wired network connection.
Ready for your commandCompletely control your ThinkPad systems with PXE Boot, System Wake-on-LAN from sleep mode, hibernate mode, and power off mode. It also supports passing ThinkPad MAC address through the dock. Those features are supported on selected ThinkPad notebooks.

General

Product Type
Docking station

Width
17.1 cm

Depth
8 cm

Height
3.075 cm

Weight
340 g

Enclosure Colour
Black

Localisation
English / Vietnam, South Korea, Europe

Video

Max Resolution Details
3840 x 2160 - 60 Hz (Dual Display)3840 x 2160 - 30 Hz (Triple Display)

Networking

Data Link Protocol
Gigabit Ethernet

Expansion / Connectivity

Interfaces
USB 3.2 Gen 2 with Always-on charging2 x USB 3.2 Gen 21 x USB-C - 24 pin USB-C1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-452 x audio / video - DisplayPort - 20 pin DisplayPort1 x audio / video - HDMI - 19 pin HDMI Type A1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole2 x USB 2.0 - 4 pin USB Type A

Miscellaneous

Cables Included
1 x USB-C to USB-C cable - external

Features
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, pass through MAC address, 65W output power with 90W power adapter connected, 100W output power with 135W power adapter connected

Security Slot Type
Kensington NanoSaver security slot / Kensington MicroSaver security slot

Compliant Standards
VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, Ukraine EMC DoC, DisplayPort 1.4, LoA, TUV Mark

Manufacturer Selling Program
Lenovo Campus

Power

Power Device
Power adapter

Power Provided
90 Watt

System Requirements

OS Required
Microsoft Windows 7 / 10

Manufacturer Warranty

Service & Support
Limited warranty - replacement - 3 years

Dimensions & Weight (Shipping)

Shipping Width
21 cm

Shipping Depth
15.8 cm

Shipping Height
7.5 cm

Shipping Weight
955 g

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
35 °C

Technical data provided by third party. We assume no liability for errors within these data.
