Lenovo 40AY0135EU

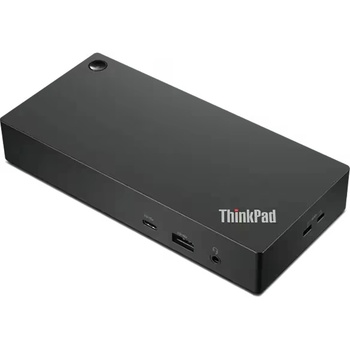

Lenovo ThinkPad Universal USB-C Dock

The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100W to notebooks, automated firmware updates and next-level plug-and-play. Everything you'd want from the future of docking is here. It’s perfect for mixed PC environments too, giving user’s the freedom to connect any PC that supports industry standards of USB-C connectivity ****: DISCLAIMER Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port.  Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button,  on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.

Top Features

• One Dock. No Limits.
• Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.
• One Cable. No Hassle.
• With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.
• Entire Fleet. One Manager.
• The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support traditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.



1.

USB-C

8.

Power Connector

2.

USB 3.2 Gen 2

9.

DisplayPort

3.

Combo Audio Jack

10.

HDMI

4.

DisplayPort

11.

USB 3.2 Gen 2

5.

USB 3.2 Gen 2

12.

Gigabit Ethernet

6.

USB 2.0

13.

USB 2.0

7.

USB-C (for connecting computer)

14.

2x Security lock slot

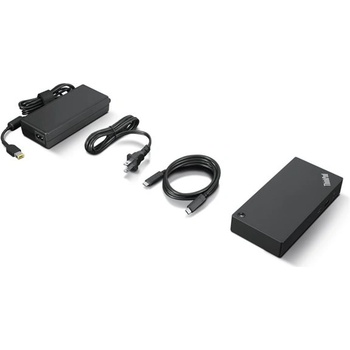

Smart Find Visibility YesWarranty Type CRUMaximum Relative Humidity (%) 95% ( no Condensation)Minimum Relative Humidity (%) 20%Maximum Operating Temperature 35℃Packed Weight 955 g (2.11 lbs)Packed Dimensions (L x D x H) 210*158*75 mm (6.73*3.15*1.21 inches)Package Type Brown BoxShipment Group ThinkPad Universal USB-C Dock
135W AC Power Adapter
Power Cord
User Guide
1m USB-C CableProduct Weight 388 g (0.86 lbs)Height 30.75 mm (1.21 inches)Depth 80 mm (3.15 inches)Length 171 mm (6.73 inches)Driver Needed YesSupported OS Os IndependentAgency Approvals FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
cULus
EAC
TUV- Mark
Serbia Kvalitet
LoA
Israel SII
Ukraine DoC
NOMColor BlackPower Plug Slim-tipPower Button YesOutput Power 65W with 90W power adapter connected
100W with 135W power adapter connectedPower Delivery YesInput Power 135WCharging Port DC-INMaximum Resolution/Refresh Rate 2 x 3840x2160 @60Hz
1 x 3840x2160 @30HzMax Number of External Monitors 3Physical Security Feature 2 x Security lock slotEthernet 1 x Gigabit EthernetAudio Ports 1 x Combo Audio JackUSB Ports 3 x USB-A 3.2 Gen 2
2 x USB 2.0
1 x USB-C 3.2 Gen 2Video Ports 2 x Display Port
1 x HDMI PortBrand ThinkPad
