Lenovo 40B20135EU

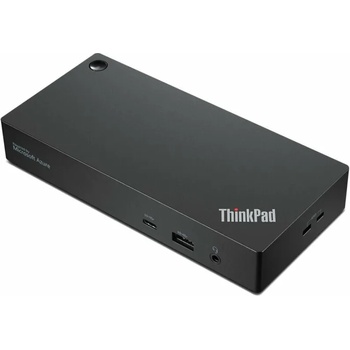

LENOVO ThinkPad Universal USB-C Smart Dock (EU)





Manufacturer
LENOVO

Manufacturer Part No
40B20135EU



Marketing Description

The Lenovo ThinkPad Universal USB-C Smart Dock offers commercial customers a smart way to work. More than just a hub, it's a bridge to a more intelligent future, with universal USB-C compatibility and incredible performance for commercial users, and a secure cloud-based management solution for their IT managers, all powered by Microsoft Azure Sphere.

Product Features

Universal dock compatibilityBoost the value of your investment with the broad compatibility of the ThinkPad Universal USB-C Smart Dock. Supporting both Thunderbolt 3 and 4, USB 4 and USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks, you'll be ready to overcome any obstacle.
Streamlined managementBreak free from the old docking paradigm and streamline your management workflow with a range of time-saving innovations. With the ThinkPad Universal USB-C Smart Dock ready, you can remotely update its firmware without a PC connected, remotely manage ports, conduct data analytics, utilize diagnostic tools, and keep your system safe with Microsoft Azure Sphere security.

General

Product Type
Docking station

Width
17.1 cm

Depth
8 cm

Height
3.075 cm

Weight
388 g

Enclosure Colour
Black

Localisation
Europe

Video

Max Resolution Details
3840 x 2160 - 60 Hz (Dual Display)3840 x 2160 - 30 Hz (Triple Display)

Networking

Data Link Protocol
Gigabit Ethernet

Expansion / Connectivity

Interfaces
3 x USB 3.1 - 9 pin USB Type A2 x USB 2.0 - 4 pin USB Type A1 x USB-C - 24 pin USB-C1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-452 x audio / video - DisplayPort - 20 pin DisplayPort1 x audio / video - HDMI - 19 pin HDMI Type A1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole

Miscellaneous

Cables Included
1 x USB-C to USB-C cable - external

Features
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, pass through MAC address, 100W output power with 135W power adapter connected

Security Slot Type
Kensington security slot

Compliant Standards
VCCI, BSMI, CB, FCC, KCC, ICES, cULus, RCM, LoA, TUV Mark

Manufacturer Selling Program
Lenovo Campus

Power

Power Device
Power adapter

Power Provided
135 Watt

System Requirements

OS Required
Microsoft Windows 7 / 10, Windows 11

Manufacturer Warranty

Service & Support
Limited warranty - replacement - 3 years

Dimensions & Weight (Shipping)

Shipping Width
21 cm

Shipping Depth
15.8 cm

Shipping Height
7.5 cm

Shipping Weight
1.245 kg

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
35 °C

Compatibility Information

Designed For
Lenovo ThinkPad E14 Gen 3 20YELenovo ThinkPad T14s Gen 2 20WMLenovo ThinkPad X1 Carbon Gen 9 20XW, 20XXLenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0

Technical data provided by third party. We assume no liability for errors within these data.
