Lenovo ThinkSystem 2.5 480GB SATA3 (4XB7A17088)

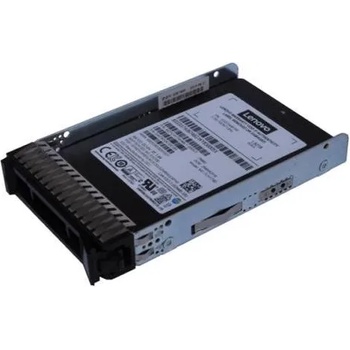

LENOVO DCG ThinkSystem 2.5inch 5300 480GB Mainstream SATA 6Gb Hot Swap SSD
id="p3576043"> LENOVO DCG ThinkSystem 2.5inch 5300 480GB Mainstream SATA 6Gb Hot Swap SSDManufacturer LENOVOManufacturer Part No 4XB7A17088Marketing DescriptionThe ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases. Product Features

• Industry standard 2.5-inch or 3.5-inch form factors
• New generation 96-layer 3D TLC NAND flash memory
• Suitable for mixed read/write workloads with an endurance of between 2.5 and 5 drive writes per day (DWPD) for 5 years
• 6 Gbps SATA host interface
• High reliability and enhanced ruggedness
• MTTF of 3 million device hours - 50% more than most drives
• Absence of moving parts to reduce potential failure points in the server
• S. M. A. R. T. support
• Advanced Encrypting Standard (AES) 256-bit encryption

GeneralDevice TypeSolid state drive - hot-swapCapacity480 GBNAND Flash Memory Type3D triple-level cell (TLC)Form Factor2.5"InterfaceSATA 6Gb/sFeatures96-layer 3D NAND technology, S. M. A. R. T. Width174 mmDepth133 mmHeight63 mmWeight434 gPerformanceDrive Writes Per Day (DWPD)5SSD Endurance4380 TBDrive Transfer Rate600 MBps (external)Internal Data Rate540 MBps (read) / 460 MBps (write)4KB Random Read95000 IOPS4KB Random Write60000 IOPSAverage Latency175 μsReliabilityMTBF3,000, 000 hoursNon-Recoverable Errors1 per 10^17Expansion & ConnectivityInterfaces1 x SATA 6 Gb/sCompatible Bay2.5"PowerPower Consumption2.5 Watt (read)
3.1 Watt (write)MiscellaneousCompliant StandardsTUV, BSMI, EN 60950, RRL, IEC 60950, IC, RoHS, UL 60950-1 Second Edition, WEEE, FCC CFR47 Part 15 B, Directive 2002/96/EC, RCM, CNS 13438, EN 55032 Class B, KCC KN32 Class B, CISPR 32 Class B, KCC KN35 Class B, Micron Green Standard, VCCI 2015.04 Class B, ICES-003:2016Manufacturer WarrantyService & SupportLimited warranty - 1 yearEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature70 °CHumidity Range Operating5 - 95% (non-condensing)Shock Tolerance (non-operating)1500 g @ 0.5 msVibration Tolerance (non-operating)3.13 g @ 5-800 HzCompatibility InformationDesigned ForLenovo ThinkAgile VX 1SE Certified Node 7Z58 (2.5")
Lenovo ThinkAgile VX Certified Node 7Y94 (2.5"), 7Z12 (2.5")
Lenovo ThinkAgile VX1320 Appliance 7Z58 (2.5")
Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5")
Lenovo ThinkAgile VX3720 Appliance 7Y92 (2.5")
Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX7820 Appliance 7Z13 (2.5")
Lenovo ThinkSystem SD530 7X21 (2.5")
Lenovo ThinkSystem SN550 7X16 (2.5")
Lenovo ThinkSystem SN850 7X15 (2.5")
Lenovo ThinkSystem SR250 7Y51 (2.5"), 7Y52 (2.5")
Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08 (2.5")
Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5")
Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5"), 7Y04 (2.5")
Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5")
Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5")
Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5")
Lenovo ThinkSystem SR645 7D2X (2.5")
Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5")
Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5")
Lenovo ThinkSystem SR665 7D2V (2.5")
Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5")
Lenovo ThinkSystem SR850 V2 7D32 (2.5")
Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5")
Lenovo ThinkSystem SR860 V2 7Z60 (2.5")
Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5"), 7X13 (2.5")
Lenovo ThinkSystem ST250 7Y45 (2.5"), 7Y46 (2.5")
Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10 (2.5") Technical data provided by third party. We assume no liability for errors within these data.
