Lenovo ThinkSystem Broadcom 57416 (4XC7A08236)

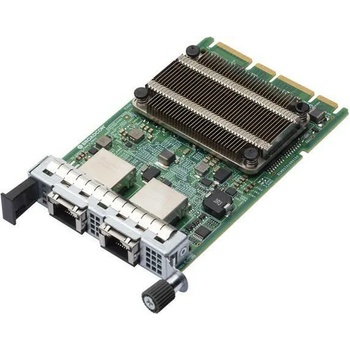

LENOVO ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter





Manufacturer
LENOVO

Manufacturer Part No
4XC7A08236



Marketing Description

10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling. The OCP adapters support the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard service processor. This support enables the sharing the network interface with the service processor and the operating system, thereby eliminating the need for a separate management network.

Product Features

Enhanced connectivityThe Lenovo ThinkSystem Broadcom 57416 network adapter offers dual RJ-45 connectors, providing robust connectivity options for both Gigabit and 10 Gigabit Ethernet networks. This versatility ensures seamless integration into existing network infrastructures, enhancing data transfer rates and network efficiency.
Advanced networking featuresWith support for a wide range of features such as Data Center Bridging Exchange (DCBX), RDMA over Converged Ethernet (RoCE), and Virtual Extensible LAN (VXLAN), this network adapter is designed to meet the demands of modern data centers. Features like Large Send Offload (LSO) and Receive Side Scaling (RSS) optimize data flow, reducing CPU load and improving overall system performance.
Comprehensive standards complianceThe Broadcom 57416 adheres to numerous industry standards, including IEEE 802.3an for 10 Gigabit Ethernet and IEEE 802.1Qaz. This compliance ensures a high level of reliability and interoperability with a wide range of network equipment and systems, making it a versatile choice for diverse IT environments.

General

Device Type
Network adapter

Form Factor
Plug-in card

Interface (Bus) Type
Open Compute Project mezzanine (OCP) 3.0

Networking

Ports
Gigabit Ethernet / 10Gb Ethernet x 2

Connectivity Technology
Wired

Cabling Type
Ethernet 1000Base-T, Ethernet 10GBase-T

Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet

Data Transfer Rate
10 Gbps

Capacity
Jumbo frame size: 9000

Features
IPv6 support, DCBX support, IPv4 support, LSO, LRO, RSS, SR-IOV, TSO, checksum offload support, MSI-X, GRE, TSS, iSCSI boot, RoCE, NC-SI, VXLAN, NVGRE, Mware NetQueue and Microsoft VMQ, DPDK, TruFlow, Interrupt coalescing, vSwitch Acceleration, tunnel-aware stateless offloads

Compliant Standards
IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Qbb, IEEE 802.1Qaz

Processor / Memory

Processor
1 x Broadcom BCM57416

Expansion / Connectivity

Interfaces
2 x network - RJ-45

Miscellaneous

Compliant Standards
UL, BSMI CNS 13438 Class A, RRL, CSA 22.2 No. 950, MIC, ICES-003 Class A, UL 60950-1, EN 60950-1, cTUVus, VCCI V-3, KN24, KN22 Class A, CNS 14336, EN 55024:2010, EN 55022:2010, EN 55024 Class A, FCC CFR47 Part 15 A

Dimensions & Weight

Width
7.6 cm

Depth
11.5 cm

Manufacturer Warranty

Service & Support
Limited warranty - 1 year

Compatibility Information

Designed For
Lenovo ThinkAgile VX2330 Appliance 7Z62Lenovo ThinkAgile VX3330 Appliance 7Z62Lenovo ThinkAgile VX3331 7Z62Lenovo ThinkAgile VX3530-G Appliance 7Z63Lenovo ThinkAgile VX3575-G Integrated System 7D43Lenovo ThinkAgile VX5530 Appliance 7Z63Lenovo ThinkAgile VX5575 Integrated System 7D43Lenovo ThinkAgile VX7330-N Appliance 7Z62Lenovo ThinkAgile VX7530 Appliance 7Z63Lenovo ThinkAgile VX7531 Certified Node 7Z63Lenovo ThinkAgile VX7575 Integrated System 7D43Lenovo ThinkAgile VX7576 Certified Node 7D43Lenovo ThinkSystem SR630 V2 7Z71Lenovo ThinkSystem SR635 7Y98, 7Y99Lenovo ThinkSystem SR645 7D2XLenovo ThinkSystem SR650 V2 7D15, 7Z73Lenovo ThinkSystem SR655 7Y00, 7Z01Lenovo ThinkSystem SR665 7D2V, 7D2WLenovo ThinkSystem SR850 V2 7D32

Technical data provided by third party. We assume no liability for errors within these data.
