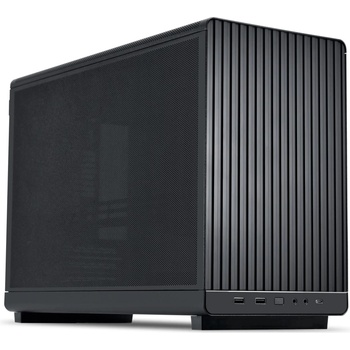

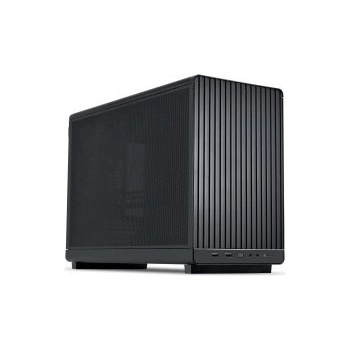

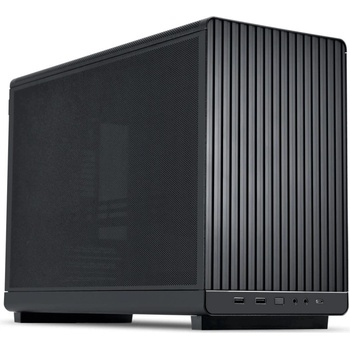

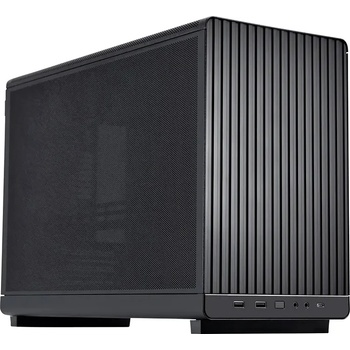

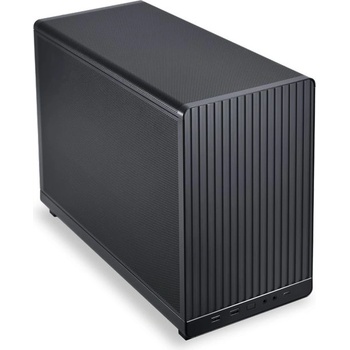

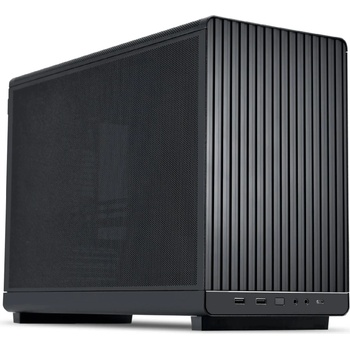

Lian Li A3-mATX Black

Lian Li Dan A3-mATX



The LIAN LI & DAN Cases A3-mATX is a versatile M-ATX mesh PC case that maintains a minimal chassis size while accommodating large components. Thanks to the relocatable PSU bracket, the A3-mATX empowers you to build a powerful and compact PC system tailored to your needs and preferences.



WELL VENTILATED, MINIMALIST DESIGN
With three sides featuring minimalist mesh panels and a sleek front panel,
the A3-mATX combines functionality with style,
making it the perfect touch to your setup.

EFFORTLESS MODULARITY, STREAMLINED BUILDS
The toolless removal of all exterior panels and modular brackets provide easier access for installation and cable management. With a removable bottom dust filter, ensuring the system stays clean and efficient.

VERSATILE COMPATIBILITY, ULTIMATE CUSTOMIZATION
Unleash your creativity with the flexible compatibility A3-mATX without compromising on high-performance, large size components.

The A3-mATX case accommodates a maximum CPU cooler height of 165mm and a 4-slot thick GPU with a maximum length of 415mm. Note that with a 25mm thick fan installed at the bottom, the GPU thickness will be limited to 61mm, allowing for only a 3-slot GPU. Additionally, when installing a radiator and fan combo, there will be no space for the GPU.

Specifications

CASE TYPE MFF (Micro Form Factor)DIMENSION (D) 443mm x (W) 194mm x (H) 321.5mm (D) 443mm x (W) 194mm x (H) 306mm(w/o feet)CAPACITY 26.3LMATERIAL SteelMOTHERBOARD SUPPORT M-ATX/ITXPSU SUPPORT ATX/SFX/SFX-L (Max 220mm)FAN SUPPORT Top: 3 x 120mm Side: 3 x 120mm or 2 x 140mm Bottom: 3 x 120mm Rear: 1 x 120mmRADIATOR SUPPORT Top: 1 x 360/240mm Side: 1 x 360/280/240mm Bottom: 1 x 240mm (360mm with fan at the bottom)DRIVE SUPPORT Tray: 2 × 2.5 SSD Bottom: 1 × 2.5 SSD or 1 × 3.5 HDDGPU LENGTH CLEARANCE Max 415mmCPU HEIGHT CLEARANCE Max 165mmEXPANSION SLOTS 4I/O PORTS 1 x Power Button 2 x USB 3.0 TYPE-A 1 x USB 3.1 TYPE-C 1 x Mic 1 x HD AudioDUST FILTER 1 x Bottom 1 x Bottom
1 x Front
