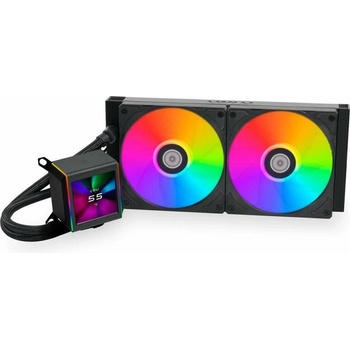

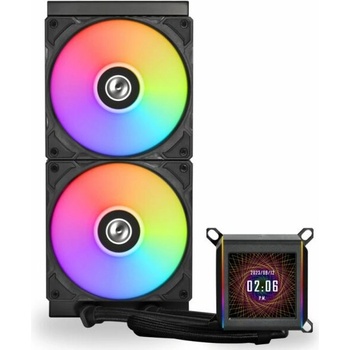

Lian Li Galahad LCD 280 ARGB (LL-FAN-WASE-770)

Lian Li Galahad II LCD 280



VISUALIZE THE COOL
DEFINE YOUR STYLE


EMPOWER WITH CUSTOMIZABLE DISPLAY

The LCD screen on the water block can be personalized and controlled using L-Connect 3, with a wide range of multi-effects and customization for you to explore.



2.88 LCD Screen

480 × 480 Resolution

500 nits Brightness

IPS Type Display

24-bit Full Color



VISUALIZING THE CHANGES WITH UNIQUE CIRCULAR EFFECTS

Through L-Connect 3, multiple circular effects that can display text at the center are offered. The speed of the effect can be set manually or adjusted dynamically according to the monitored hardware sensor.

Center Display Options

• CPU temperature
• CPU load
• GPU temperature
• GPU load
• Coolant temperature
• Cus tomized text
• Time



• Layer 1: Watermark
  Upload an image or GIF that can be moved horizontally and vertically with different levels of shadow and opacity adjustments.



• Layer 2: Hardware Information or Text
  Display and loop various hardware information, time, or custom text messages.
  Each can be adjusted with various layouts, orientations, fonts, sizes, and shadow settings.



• Layer 3: Themed Motion Graphics
  Select background type effects with intensity that can be manually customized or dynamically adjusted based on hardware sensor monitor.



• Layer 4: Images or Videos
  Set your background with colors or display videos and images through screen record/screen capture or file upload (MP4/GIF/JPEG/PNG).



HIGH DENSITY ALUMINUM RADIATOR

This 30mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and results in greater thermal performance.




Tech specs:

TYPE 280mmCOLOR BlackPUMP SOLUTION Asetek 8th Gen PumpPUMP SPEED 3600 RPM (Max. )RADIATOR FINS Single wavePUMP NOISE 32.1 dBAWATER BLOCK DIMENSION 72.15 × 73.05 × 61.98 mmLCD DISPLAY TYPE 2.88 IPSLCD DISPLAY RESOLUTION 480 × 480 pixelsSCREEN BRIGHTNESS 500 nitsFAN SIZE 120 x 120 x 25mmRADIATOR DIMENSION 319.5 x 140 x 30mmRADIATOR MATERIAL AluminumTUBE LENGTH 385mmFAN DIMENSION 143 x 140 x 25mmFAN SPEED 300~1550 RPMSTATIC PRESSURE 2.99 mmH2O (Max. )AIRFLOW 89.7 CFM (Max. )ACOUSTIC NOISE 26.7 dB(A)BEARING TYPE Fluid Dynamic Bearing (FDB)COMPATIBLE CPU SOCKETS Intel: LGA 1700 / 1200 / 115x
AMD: AM5 / AM4
