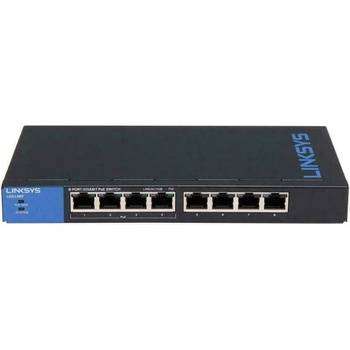

Linksys LGS310MPC

Linksys LGS310MPC :: 8-Port Managed Gigabit Switch, PoE+, 2x SFP


Спецификаци я от производителя --> /click to open/

Linksys LGS310MPC 8-портов управляем гигабитов с PoE+ превключвател.

• 8 х Gigabit Ethernet PoE+ порта
• 2 х Gigabit SFP uplink порта
• PoE мощност: 110 W общa



model:LGS310MPCTotal System Ports:8GE + 2 SFPCopper FE/GE Ports/PoE+ (RJ45):Ports 1-8Ports SFP:Ports 9-10Status LEDs:System (blue/yellow), Link/Act(green)CPU Memory DRAM:256MBPower Input:12V/1AGreen Power Mode:EEEMax Power Consumption:133.77WForwarding Rate:14.88 MppsSwitching Capacity:20 GbpsMAC Address:8KJumbo Frame (FE, GE):10KbytesEnclosure Dimension240 x 105 x 27 mm(L x H x W):Device Weight:636 g (1.34 lb)Operating Temperature:0 to 40°C (32 to 104°F)Operating Humidity:10 to 90% RHStorage Temperature:-40 to 70°C (-40 to 158°F)Storage Humidity:5 to 95% RH (non-condensing)



Standards:802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x Flow Control, 802.3ad, 802.1d STP, 802.1w RSTP, 802.1s MSTP, 802.1q VLAN, 802.1p Priority QoS, 802.1x Port Access Authentication, 802.1ab Link Layer Discovery Protocol, 802.3az Energy Efficient EthernetSpanning Tree:IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)Link Aggregation:IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per groupVLAN:Port-based and 802.1q VLANs, Management VLAN, Guest VLAN supportNumber of VLANs:256 active VLANs (4,096 range))Auto Voice VLAN:Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levelsIGMP SnoopingIGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groupsHead-of-Line (HOL) Blocking:Head-of-line (HOL) blocking preventionSecurity:802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports limited dynamic lock andlocked MAC address (256 max entries per port), DOS Attack Prevention, Port Isolation (Protected Ports)management access controlStorm Control:Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbpsQoS - Priority Levels:8 hardware queuesQoS - Class of Service:Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-basedQoS - Scheduling:Priority queuing and weighted round robin (WRR)RMON:Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysisPort Mirroring:Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzerManagement Interface:Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)Other Management:Telnet (menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTPSNMP:Version 1, 2c and 3





.
