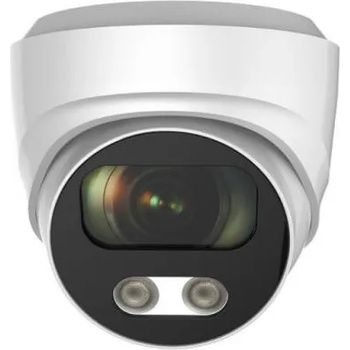

Longse CMSBFG400

Camera

Image Sensor
1/3" Progressive Scan CMOS Sensor

Resolution
4MP

Effective Pixels
2560(H)*1440(V)

Compression
H. 264/H. 264+/H. 265/H. 265+/JPEG/AVI

TV System
PAL/NTSC

Electronic Shutter Time
Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec

Minimun Illumination
0.01Lux

S/N Ratio
60dB

Scanning System
Progressive

Video Output
Network

Reset Button
Optional

Lens

Focus Length
3.6mm

Focus Control
Fixed

Lens Type
Fixed

Pixels
4MP

Night Vision

Infrared LED
42 x 2PCS

Infrared Distance
25M

IR Status
Auto Control

IR Power On
Smart, Manual & Timed mode

Network

Ethernet
RJ-45 (10/100Base-T)

Wireless
/

Protocol
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,   RTCP , PPPoE, NTP,   SMTP, UDP

ONVIF
Support ONVIF 2.4(Profile S/T/G)

P2P
YES

POE
Optional, Support IEEE 802.3af

Video Delay
0.3S (Within the Lan)

Main Stream 1
2688*1512@20fps

Main Stream 2
2560*1440@30fps

Main Stream 3
1920*1080@30fps

1280*720@30fps

Sub Stream 1
1280*720@30fps

Sub Stream 2
720*480@30fps

Sub Stream 3
/

Tri Stream
/

IE Brower
IE8-11, Google Chrome, Firefox , Mac Safari

Smart Phone
iPhone, Android

AI Function

Intelligent Analysis
Intrusion Detetion

Camera Features

Day/Night
Color/ B&W (IR-CUT )

Image Config
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion

Full Color
/

Corridor Pattern
Support

Defog  Mode
Support

ROI
Support

BLC
Support

WDR
DWDR: 50dB

Motion Detection
Support

Privacy  Masking
3 Rectangular Zone

Recording Mode
NVR/CMS/Web

Language
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese

Interface

Audio
Optional 1 Built-in MIC

Alarm
/

SD Card Slot
Optional, Support Max 512GB

RS485
/

General

Housing
Metal, IP67

Anti-cut Bracket
NO

IR Cut Filter
YES

Operation Temperature
-20℃ ~ +60℃ RH95% Max

Storage Temperature
-20℃ ~ +60℃ RH95% Max

Power Source
DC12V±10%, 700mA

Dimension
￠96 x 91(H) mm

Weight
600g
