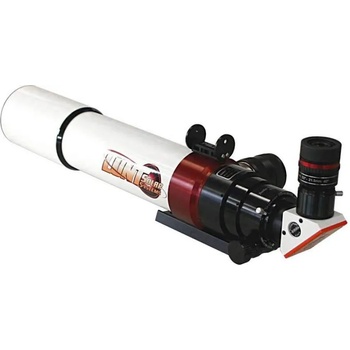

Lunt Solar Systems LS80THa/B1800FTPT H-alpha

Complete H-alpha solar telescope with 80mm aperture, < 0.7 Angstrom bandwidth, advanced air-pressure tuning system, B1800 blocking-filter, and Feather-Touch focuser. The large B1800 blocking-filter provides smaller vignetting for imaging.

The LS80THa/B1800FTPT is a complete telescope for observing the sun in H-alpha, a precision aligned ED refractor with 80mm aperture (no central obstruction) and 560mm focal length. An internal Etalon with advanced air-pressure tuning system Pressure-Tuner provides < 0.7 Angstrom bandwidth. This Pressure Tuner system allows a more accurate Etalon adjustment than other systems. The Pressure-Tuner system adapted the Etalon to varying altitudes and atmospheric pressures for always optimal performance. The Etalon is installed safely inside the telescope-tube.
Fine adjustment is achieved by a 2' Starlight-Instruments Feather-Touch focuser with 1.5' travel and 10:1 reduction.

Blocking-filter is the B1800. The B1800 is good for visual solar observing, and also good for solar imaging. The star diagonal in which the blocking filter is installed, is equipped as standard for 1.25' eyepieces and with a T2 camera connection.

The telescope is upgradeable with the additional available DSII double-stack system. The optional DSII system is a internal double stack module with 'Pressure Tuner', that provides a bandwidth < 0.5 Angstrom. More details on the solar surface will become visible by reducing the bandwidth.

Features:

• Aperture: 80mm (ED refractor, unobstructed)
• Focal length: 560mm
• Bandwidth: internal Etalon with < 0.7 Angstrom
• Tuning: air-pressure tuning system
• Blocking-filter: B1800 with 1.25' and T2 connection
• Focuser: Starlight-Instruments Feather-Touch focuser with 10:1 reduction
• Integrated 1/4'-20 tapped base (standard thread for photo-tripods)
• Dove tail bar with GP level for astronomical mounts

The kit includes:

• LS80THa H-alpha solar telescope
• Pressure-Tuner system
• B1800 blocking-filter in star-diagonal
• 2' Feather-Touch focuser
• 1/4'-20 connection and dove tail bar
• LUNT zoom eyepiece
• Sol-Searcher
• Transport case
• Instruction manual

Марка LUNT Solar SystemsГаранция, години 2EAN 4007922035086Размер на опаковката (Д x Ш x В), cm 0x0x0Транспортно тегло, kg 13Окуляри окуляр с променливо фокусно разстояниеОптична конструкция рефракторен телескопДиаметър на главното огледало (апертура), mm 80Фокусно разстояние, mm 560Фокусиращо устройство 2', Крейфорд, 2-скоростно (1:10)Блокиращ филтър B1800Ширина на честотната лента, Ангстрьом
