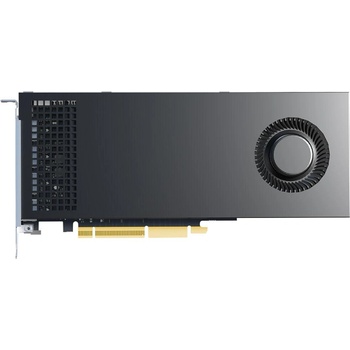

Matrox ARC LUMA-A380 6GB GDDR6 (LUMA-A380P)

Matrox LUMA A380P

Bus type: PCIe 4.0 x 16 (x8 electrical)
Number of video outputs: 4
Video output connectors: 4x DisplayPort
DisplayPort specification: 2.1 UHBR10
Maximum number of cards in a system: 4

Performance
Maximum resolution: 2x 8K60/5K120 or 4x 5K60 HDR 12b
Bit depth and color space: Up to 36 bpp (Bits per Pixel); YCbCR 4:4:4; YCbCR 4:2:0; RGB
Memory: 6GB GDDR6
GPU: Intel Arc A380
Multi-stream audio: High-definition audio streams on four digital ports simultaneously

Additional features
DisplayPort features: VESA DSC 1.1, and Adaptive Sync
HDCP compliance: 2.3
Board-to-board framelock: Yes
Supported graphics API: DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3, oneAPI and OpenVINO
Hardware video encode/decode: H264/H265/AV1/VP9

Environmental & Power consumption
Cooling: Active
Power consumption: 75W
Operating temperature: 0 to 45 oC

Hardware
Form factor: Standard Height Single Slot
Dimensions:
Length: 25.38 cm
Height: 12.68 cm
Bracket: Standard Height

Software & API
Matrox PowerDesk for Windows: Yes
Mura Developer tools: Yes
Operating systems: Windows 10/11
System requirements: Single available PCIe 3.0 (or newer) x8 slot, Resizable BAR (reBAR) or Smart Access Memory (SAM)
