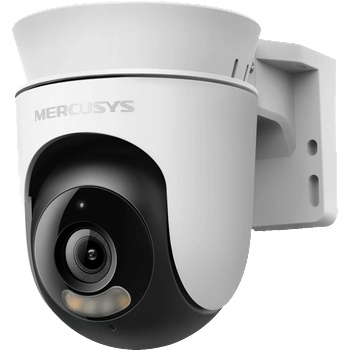

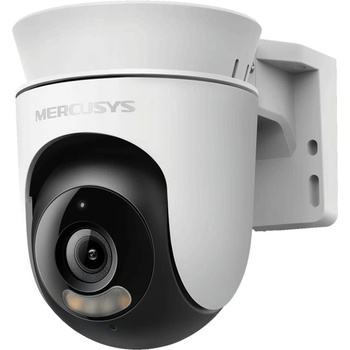

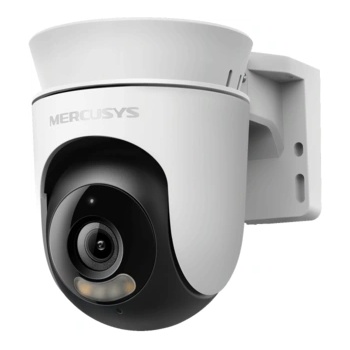

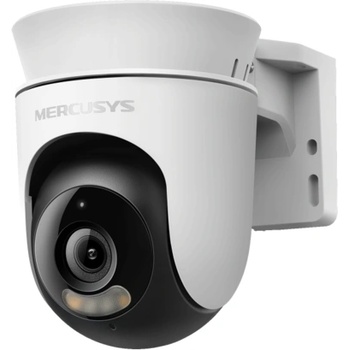

Mercusys MC500

Mercusys MC500

Outdoor Pan/Tilt Security Wi-Fi Camera

1080p Full HD with 360° View - Delivers sharp 1080p video and full 360° horizontal coverage to see every angle and every detail.

Smart Motion & Person Tracking - Automatically detects and tracks motion or people, ensuring key activity stays in focus.

Color Night Vision - Delivers vivid, detailed images even at night for 24/7 protection.

Focus on What Matters - Smart person and motion detection, combined with customizable activity zones, helps filter out irrelevant events and sends alerts only when needed.

Local & Cloud Storage - supports up to 512GB microSD cards and cloud storage for secure, flexible video backup.

Weatherproof for Outdoor Use - IP65-rated for reliable performance in rain, dust, or snow. Mounts easily to walls, ceilings, or poles.

Privacy Protection with Lens Shield - Activate the physical lens cover when monitoring isn’t needed for peace of mind at home.







1080p Full HD for Clear Outdoor Viewing

Capture outdoor movement in smooth, reliable 1080p resolution. Ideal for daily visibility and peace of mind.





360° Coverage with Smart Motion Tracking

One camera is all you need to keep an eye on your entire outdoor space. It auto-tracks motion and follows preset patrol routes to cover every corner.





Full-Co lor Night Vision

See clearly after dark with full-color night vision. Even in low-light or near-total darkness, the camera captures clear details and provides round-the-clock protection you can count on.



SpecificationDetailsImage Sensor 1/32'' Progressive Scan CMOS (Not Starlight Sensor)Focal Length 4 mmAperture F2.0Field of View 87° (Diagonal), 74° (Horizontal), 40° (Vertical)Pan Mechanical Range 340° (360° Pan Coverage)Tilt Mechanical Range 90° (130° Tilt Coverage)IR LED 850 nm (98 ft / 29.9 m)Color Night Vision SupportedPhysical Interfaces 1× RESET Button, 1× MicroSD Card SlotMaximum Resolution 1920 × 1080 pxDigital Zoom Supports 9× ZoomFrame Rate 15 / 20 / 25 / 30 fps (15 fps by default)Video Compression H. 264Live View YesImage Enhancement 3DNR, WDRAudio Input & Output Built-in Microphone and SpeakerAudio Communication Two-Way Audio with Noise CancellationSiren Volume 88 dB (Measured at 4-inch / 10-cm distance)Local Storage MicroSD Card (Supports up to 512 GB)Cloud Storage MERCUSYS Camera Care Cloud Storage (Subscription Required)Security 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSKConnectivity Type WiFiWireless Standards 802.11b (11 Mbps), 802.11g (54 Mbps), 802.11n (72.2 Mbps)RTSP YesONVIF YesPower Source 9V DC Power AdapterInput Voltage 100–240 VAC, 50/60 Hz, 0.3 AOutput Voltage 9.0 V / 0.85 ASmart Integration Google Assistant, Amazon AlexaWeather Resistance IP65Mounting Options Ceiling-Mounted, Pole-Mounted, Wall-MountedOperating Temperature -20°C – 50°C (-4°F – 122°F)Storage Temperature -40°C – 60°C (-40°F – 140°F)Operating Humidity 10%–90% RH, Non-CondensingStorage Humidity 0%–90% RH, Non-CondensingDimensions (W × D × H) 141.5 × 93 × 122 mm (5.57 × 3.66 × 4.80 in)AI Detection Motion Detection, Person DetectionActivity Zones Yes (only works with motion detection)Output Notification System Notification
