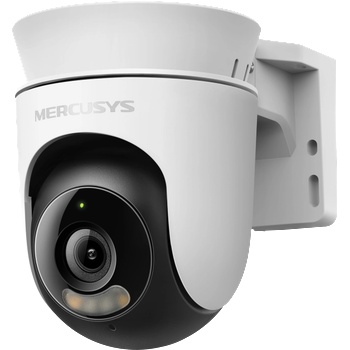

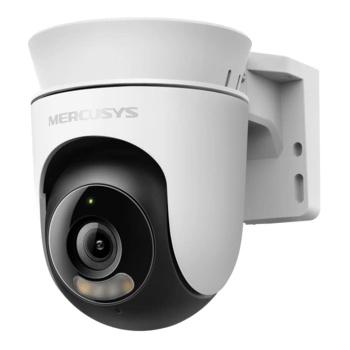

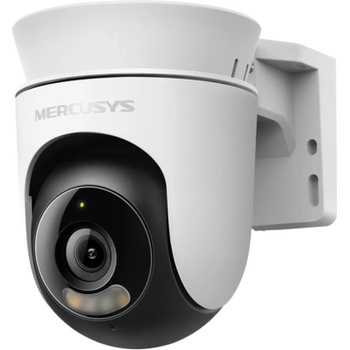

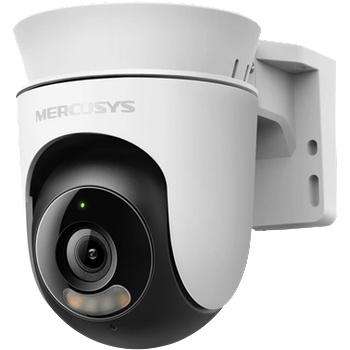

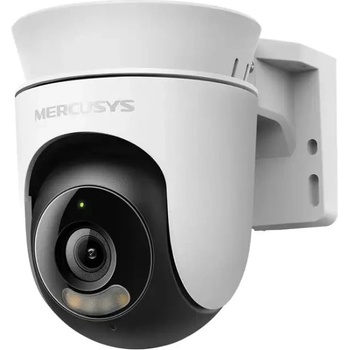

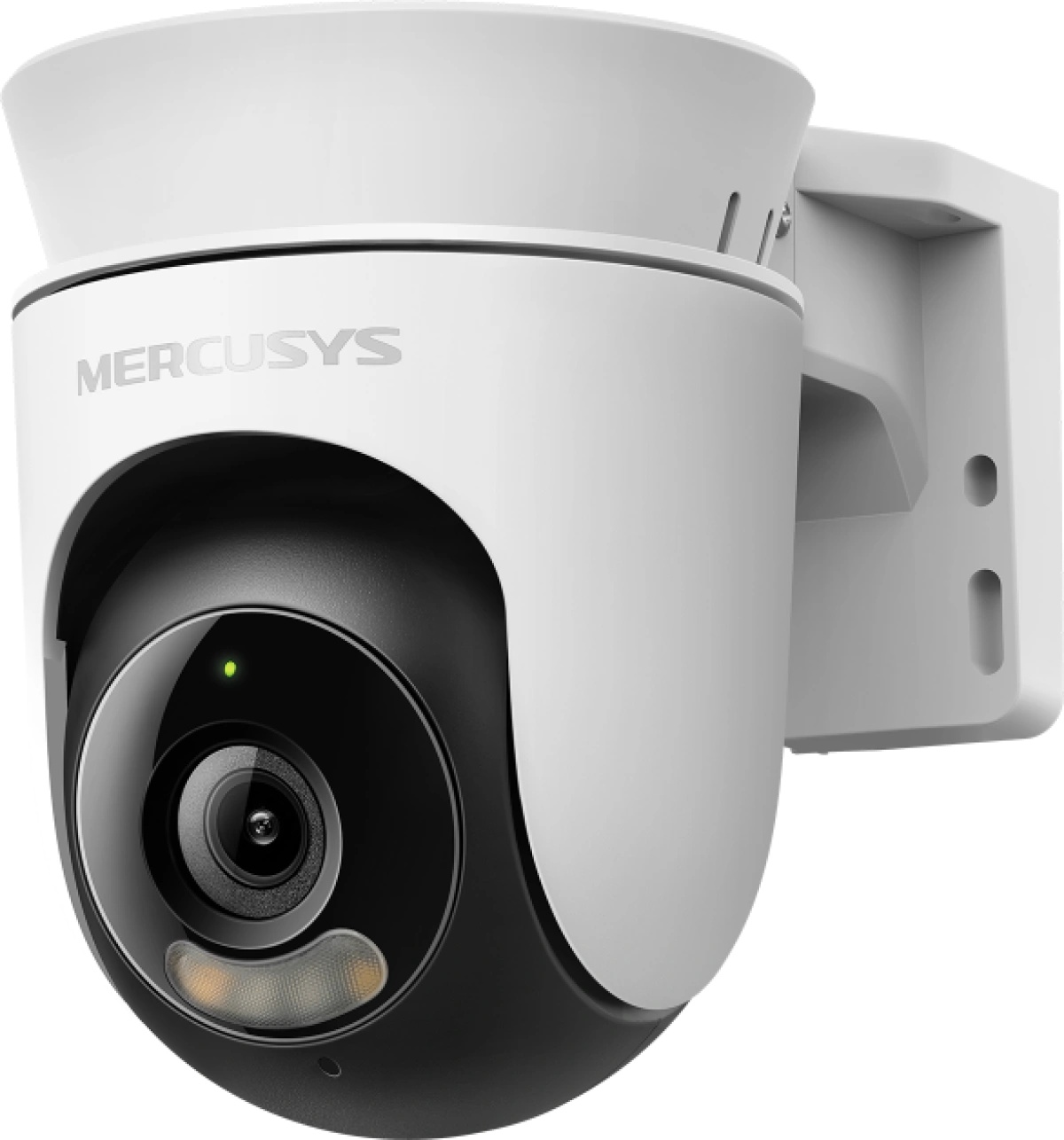

Mercusys MC510

Mercusys MC510



Outdoor Pan/Tilt Security Wi-Fi Camera

2K QHD with 360° View - Delivers sharp 2K 3MP video and full 360° horizontal coverage to see every angle and every detail.

Smart Motion & Person Tracking - Automatically detects and tracks motion or people, ensuring key activity stays in focus.

Color Night Vision - Delivers vivid, detailed images even at night for 24/7 protection.

Focus on What Matters - Smart person and motion detection, combined with customizable activity zones, helps filter out irrelevant events and sends alerts only when needed.

Local & Cloud Storage - supports up to 512GB microSD cards and cloud storage for secure, flexible video backup.

Weatherproof for Outdoor Use - IP65-rated for reliable performance in rain, dust, or snow. Mounts easily to walls, ceilings, or poles.

Privacy Protection with Lens Shield - Activate the physical lens cover when monitoring isn’t needed for peace of mind at home.





2K QHD for Crisp Outdoor Details

See faces, vehicles, and movement in stunning 2K QHD clarity. Perfect for capturing complex outdoor details.







360° Coverage with Smart Motion Tracking

One camera is all you need to keep an eye on your entire outdoor space. It auto-tracks motion and follows preset patrol routes to cover every corner.





Guard Your Home As If You're There

MC510 uses smart motion and person detection to ignore distractions like falling leaves or shifting light. When a real threat is detected, it triggers a flashing light and loud siren to alert and deter intruders.





CategorySpecificationCa mera  Image Sensor 1/3" Progressive Scan CMOS (not Starlight Sensor)Lens Focal Length: 4 mm; Aperture: F2.0; Field of View: 87° (Diagonal) / 74° (Horizontal) / 40° (Vertical)Motion Range Pan Mechanical Range: 340° (360° Pan Coverage); Tilt Mechanical Range: 90° (130° Tilt Coverage)Night Vision 850 nm IR LED (98 ft / 29.9 m); Color Night VisionInterface & Button 1× RESET Button; 1× MicroSD Card SlotVideo & Audio  Maximum Resolution 2304 × 1296 pxFrame Rate 15/20/25/30 fps (15 fps by default)Digital Zoom Supports 10.8× ZoomVideo Compression H. 264Live View YesImage Enhancement 3DNR; WDRAudio Input & Output Built-in Microphone and SpeakerAudio Communication Two-Way Audio with Noise CancellationSiren Volume 88 dB (measured at 4-inch / 10-cm distance)Storage  Local Storage MicroSD Card (Supports up to 512GB)Cloud Storage MERCUSYS Camera Care Cloud Storage Services (Subscription Required)Software  Security 128-bit AES Encryption with SSL/TLS; WPA/WPA2-PSKNetwork  Network Connectivity Connect via WiFiWireless Connectivity 11 Mbps (802.11b); 54 Mbps (802.11g); 72.2 Mbps (802.11n)RTSP YesONVIF YesPower  Power Source 9V DC Power AdapterInput Voltage 100–240 VAC, 50/60 Hz, 0.3 AOutput Voltage 9.0 V / 0.85 AGeneral  Smart Integration Google Assistant, Amazon AlexaWeather Resistance IP65Mounting Options Ceiling-Mounted; Pole-Mounted; Wall-MountedOperating Temperature -20°C to 50°C (-4°F to 122°F)Storage Temperature -40°C to 60°C (-40°F to 140°F)Operating Humidity 10%–90% RH (Non-Condensing)Storage Humidity 0%–90% RH (Non-Condensing)Dimensions (W × D × H) 141.5 × 93 × 122 mm (5.57 × 3.66 × 4.80 in)Detection & Notifications  AI Detection Motion Detection; Person DetectionActivity Zones Yes (Only works with motion detection)Output Notification System Notification
