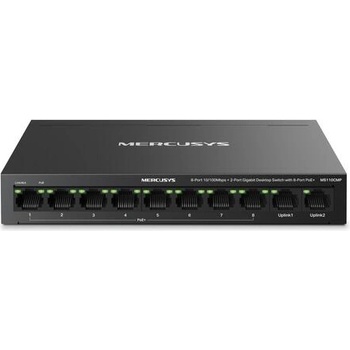

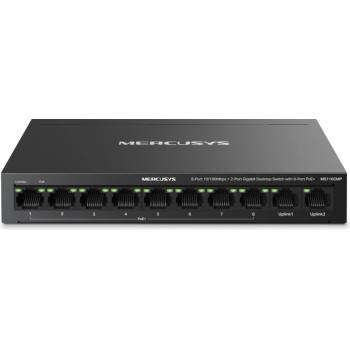

Mercusys MS110CMP

Mercusys MS110CMP



8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+

• 10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
• Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports *
• 2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Plug and Play: Simple to use and saves time and effort
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
• Durable Metal Casing: Allows for efficient heat dissipation and long network life





Category SpecificationHardware  Standards & Protocols IEEE 802.3x Flow ControlPoE Ports  Connector Type RJ45Standard Compliant with IEEE 802.3 af/at Powered DevicesPoE Ports Port 1 – Port 8PoE Power Budget 115 WDimensions 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)Interfaces 8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIXExternal Power Supply External Power Adapter (Output: 54V/2.2A)Installation Desktop / Wall MountData Rates 10/100 Mbps at Half Duplex; 20/200 Mbps at Full DuplexJumbo Frame 2 KBSwitching Capacity 5.6 GbpsMAC Address Table 2KMax Power Consumption 3.79 W (220 V / 50 Hz, no PD connected); 130.49 W (220 V / 50 Hz, with 115W PD connected)Max Heat Dissipation 12.92 BTU/h (no PD connected); 444.97 BTU/h (with 115W PD connected)Environment Operating Temperature: -10℃~40℃ (14℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% RH non-condensingStorage Humidity: 5%~95% RH non-condensing
