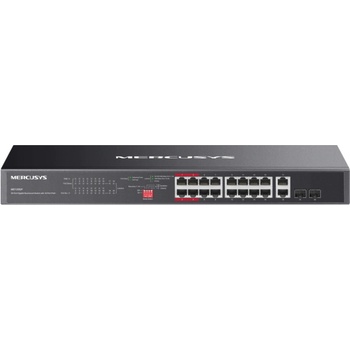

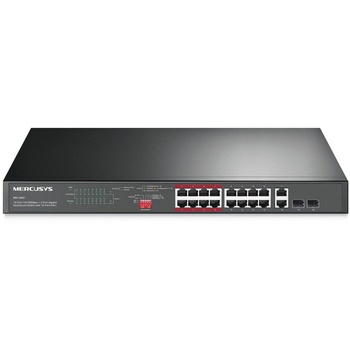

Mercusys MS120GP

MS120GP

20-Por t Gigabit Rackmount Switch with 16-Port PoE+

• 16× Gigabit PoE+ RJ45 ports, 2× Gigabit non-PoE RJ45 ports, and 2× Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 192 W * for all PoE ports
• Working with IEEE 802.3af/at compliant PDs
• Up to 250m data and power transmitting range under Extend Mode**
• Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play. No configuration or central management required. MS120GP

Coming Soon

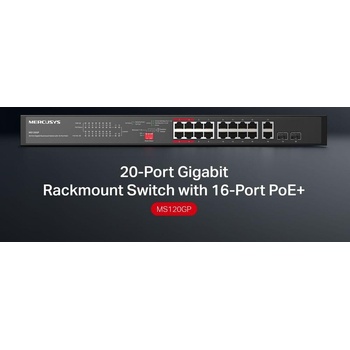

20-Port Gigabit Rackmount Switch with 16-Port PoE+

• 16× Gigabit PoE+ RJ45 ports, 2× Gigabit non-PoE RJ45 ports, and 2× Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 192 W * for all PoE ports
• Working with IEEE 802.3af/at compliant PDs
• Up to 250m data and power transmitting range under Extend Mode**
• Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play. No configuration or central management required.

LAN ports

Design

Rackmount

Switchning capacity [Gbps]

40

MAC address table

8000

Purpose

Ind oor

Power type

Mains power (230V)

Fans

Yes

LAN ports

18

LAN speed

(18) 10/100/1000Mbps

Max. LAN ports speed

1G

PoE type

PoE-Out (only)

RJ45 ports 1G

18

Optical interfaces

(2) 1000Mbps

PoE-Out standards

802.3af, 802.3at

PoE Out ports

16

PoE budget [W]

192

Long range PoE - up to 250m

Yes

Max. power consumption [W]

13,5

Chassis design

Metal

Power via connector/terminal

230V AC

Operating temperature [°C]

-10 up to 50

Depth [mm]

180

Width [mm]

440

Height [mm]

44
