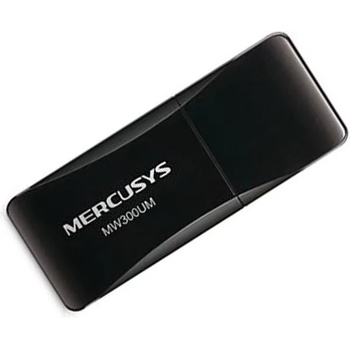

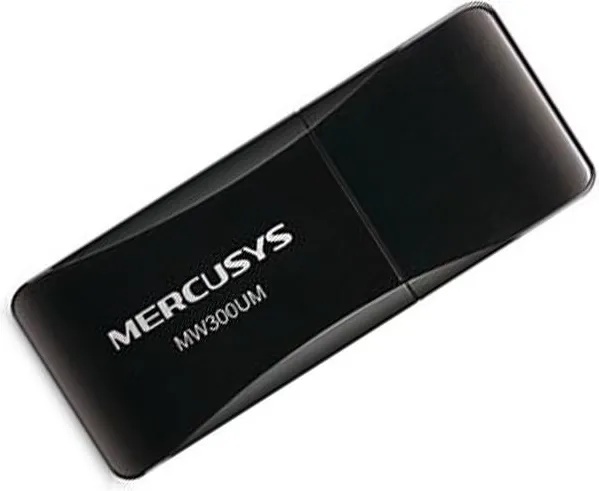

Mercusys MW300UM

Mercusys MW300UM

N300 Wireless Mini USB Adapter

Provides fast 300Mbps Wi-Fi connections for wired devices
Ideal for online gaming, HD streaming, web browsing, and more
Supports Windows 10/8.1/8/7/XP (32/64bit)

300Mbps Wireless Speed

The MW300UM Wireless Mini USB Adapter allows you to connect a desktop or notebook computer to a wireless network so you can enjoy high-speed mobile Internet access. Reach wireless speeds 300Mbps, perfect for HD streaming, online gaming, and large file downloads. Get connected, get fast.

Wireless Network Sharing

The Soft AP function allows the MW300UM to immediately turn your PC or laptop into a Wi-Fi hotspot if you are using an existing wired connection. Your mobile devices, including smartphones and tablets, can then connect to a high performance 300Mbps wireless network.

Dimensions (W X D X H) 1.69 × 0.68 × 0.33 in. (42.9 × 17.2 × 8.5 mm)
Interfaces USB 2.0
Antenna Type Internal
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.400 - 2.4835GHz

Signal Rate

11n: Up to 300Mbps(Dynamic)

11g: Up to 54Mbps(Dynamic)
11b: Up to 11Mbps(Dynamic)

Reception Sensitivity

270M: -62dBm@10% PER

130M: -65dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER
1M: -90dBm@8% PER

Environment

Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)

Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)

Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing
Transmission Power
