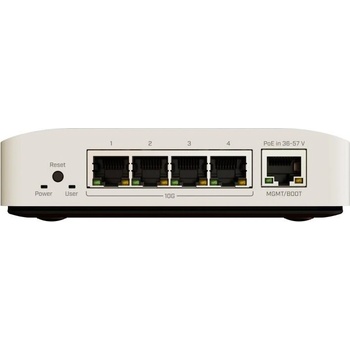

MikroTik CRS304-4XG-IN

Mikrotik CRS304-4XG-IN

Introducing the CRS304-4XG-IN – a compact yet highly capable 10 Gigabit Ethernet switch designed to simplify your network setup routine. Unlike typical 10 Gigabit products, the new CRS304 is equipped with four ready-to-use 10 Gigabit Ethernet ports straight out of the box. That’s right – you don’t need any extra SFP modules, just pure plug-and-play! Also, there is an additional Gigabit Ethernet port – for management purposes.

Innovative Design Meets Silent Operation

The CRS304 features an enclosure that doubles as a robust, lightweight heat sink, eliminating the need for active cooling. This fanless design ensures silent operation, making it ideal for any environment where noise is a concern – offices, libraries, or even your bedroom homelab! The sturdy form-factor provides a premium feel, balancing comfortable weight and durability, all at an accessible price point.

Versatile Mounting Options

This switch includes a convenient DIN rail mount on the side and standard screw attachment points on the back, allowing for seamless integration literally anywhere. Furthermore, the side DIN rail mount can be moved to the back of the switch.

Multiple Powering Options for Ultimate Reliability

Power redundancy is a key feature of the CRS304. It offers four different power input options: two DC jacks, a 2-pin terminal, and PoE-in. The switch automatically selects the power source with the highest voltage, ensuring uninterrupted operation.

Small Frame, Big Game

Powered by a dual-core ARM CPU and the mighty Marvell Prestera switch chip, the CRS304 delivers exceptional performance for its tiny size. Port-to-port forwarding, broadcast storm control, MAC filtering, VLANs, traffic mirroring, bandwidth limitations, and even some Layer 3 hardware offloading – not a problem for the CRS304-4XG-IN!

Your Backpack Server Room

The CRS304’s small form factor and enhanced durability make it an ideal choice for both stationary and mobile applications. Place it on your desk or keep it in your backpack for on-the-go networking – this is a must-have switch for any network administrator.





SpecificationsDetailsArchitecture ARM 64bitCPU 98DX2528CPU core count 2CPU nominal frequency 1200 MHzSwitch chip model 98DX2528RouterOS license 5Operating System RouterOS v7 Size of RAM 512 MBStorage size 32 MBStorage type FLASHMTBF Approximately 200'000 hours at 25CTested ambient temperature -40°C to 70°CSuggested price $199.00PoweringDetailsNumber of DC inputs 4 (DC jack, PoE-IN, 2-pin terminal)DC jack input Voltage 12-57 V / 12-57 V2-pin terminal input Voltage 12-57 VMax power consumption 21 WMax power consumption without attachments 15 WCooling type PassivePoE in 802.3af/atPoE in input Voltage 36-57 VEthernetDetails10/100/1000 Ethernet ports 1Number of 1G/2.5G/5G/10G Ethernet ports 4Certification & ApprovalsDetailsCertification CE, EAC, ROHSIP 20
