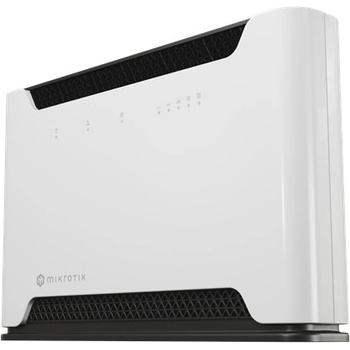

MikroTik D53G-5HACD2HND-TC&EG120K-EA



Remove the bottleneck in your mobile internet setup



Are you tired of ISP or operator-issued routers that limit your speed and coverage? Chateau LTE12 is the solution, delivering faster, more reliable mobile internet, whether you are in the city or the countryside. With carrier aggregation and expanded 4x4 MIMO support, you’ll experience:



• Faster speeds in crowded areas
• More stable connections in remote locations
• Wider coverage across multiple LTE bands





New and improved LTE connectivity

• Upgrade d LTE12 modem for stronger, reliable connections.
  Expanded 4x4 MIMO support on more bands: 1 / 3 / 7 / 38 / 40 / 41
• Dual-band Wi-Fi for seamless performance across all devices
• Now with B32 support for improved LTE performance in supported regions!





< strong>Built for homes and businesses

• 5x Gigabit Ethernet ports to connect media servers, PC towers, TVs, or smart home systems.
• Dual-band Wi-Fi (2.4 GHz & 5 GHz) ensures stable connections for all your devices.
• External LTE antenna support (SMA female ports) to boost signal strength in tricky signal areas.
• RouterOS for advanced security, VPNs, and full network control.



Here is a standard-format table including all the provided specifications, grouped by category:

Category Parameter Value  Architecture ARM 32bit  CPU IPQ-4019  CPU core count 4  CPU nominal frequency 448–896 (auto) MHz  Switch chip model IPQ-4019  RouterOS license 4  Operating System RouterOS v7  Size of RAM 256 MB  Storage size 32 MB  Storage type FLASH  MTBF ~200,000 hours at 25°C  Tested ambient temperature -20°C to 70°C  IPsec hardware acceleration YesPowering Number of DC inputs 1 (DC jack)  DC jack input Voltage 12–28 V  Max power consumption 24 W  Max power without attachments 18 W  Cooling type PassiveMobile 3G Category R8 (42.2Mbps DL, 5.76Mbps UL)  3G bands 1 / 3 / 5 / 8  LTE Category 12 (600Mbps DL, 150Mbps UL)  MIMO DL 4x4  MIMO UL 1x1  LTE FDD bands 1 / 3 / 5 / 7 / 8 / 20 / 28 / 32  LTE TDD bands 38 / 40 / 41  TAC 86642205Wireless 2.4 GHz Max data rate 300 Mbit/s  Number of chains 2  Standards 802.11b/g/n  Antenna gain (dBi) 2  Chip model IPQ-4019  Generation Wi-Fi 4Wireless 5 GHz Max data rate 867 Mbit/s  Number of chains 2  Standards 802.11a/n/ac  Antenna gain (dBi) 4  Chip model IPQ-4019  Generation Wi-Fi 5Ethernet 10/100/1000 Ethernet ports 5Peripherals SIM slots 1 (Micro SIM)  USB ports 1  USB Power Reset Yes  USB slot type USB type A  Max USB current 1 AOther Mode button YesCertification & Approvals Certification CE, EAC, ROHS  IP 202.4 GHz Wireless Specs 1 Mbit/s Tx / Rx Sensitivity 25 dBm / -100 dBm  11 Mbit/s Tx / Rx Sensitivity 25 dBm / -94 dBm  6 Mbit/s Tx / Rx Sensitivity 26 dBm / -95 dBm  54 Mbit/s Tx / Rx Sensitivity 23 dBm / -78 dBm  MCS0 Tx / Rx Sensitivity 26 dBm / -96 dBm  MCS7 Tx / Rx Sensitivity 22 dBm / -73 dBm5 GHz Wireless Specs 6 Mbit/s Tx / Rx Sensitivity 26 dBm / -96 dBm  54 Mbit/s Tx / Rx Sensitivity 22 dBm / -80 dBm  MCS0 Tx / Rx Sensitivity 26 dBm / -96 dBm  MCS7 Tx / Rx Sensitivity 21 dBm / -75 dBm  MCS9 Tx / Rx Sensitivity 19 dBm / -70 dBm
