MikroTik RB912R-2nD-LTm&EC200A

MikroTik RB912R-2nD-LTm&EC200A-EU

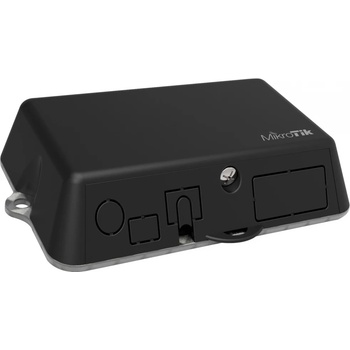

LtAP Mini LTE kit is a compact and rugged wireless access point designed to keep your vehicle connected wherever you go. Whether you’re riding through the Great Outdoors or navigating busy urban streets, this tiny device ensures you’re always online and ready to upload location data.

LtAP mini has a special extra-durable enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for tracking moving vehicles like cars, buses or trains.

There’s an Ethernet port for your wired devices and a classic 2.4 GHz wireless radio. The RS232 serial port gives you console access for debugging.

The power options are as flexible as they get. You have the classic DC jack, 802.3af/at PoE-in, and a microUSB option. We have even seen users powering the LtAP mini with a portable power bank throughout the day!

The new LTE card offers a better price and the support of the most popular LTE bands, including the B28 band! It is connected to two internal antennas with u. FL connectors, so you can unplug the connectors and add your own external LTE antenna for even better coverage.

We have provided a simple tracking application example in the RouterOS documentation - to help you start tracking your vehicle’s location in real-time. You will need to connect an external GPS antenna, we recommend using the ACGPSA antenna with IP67 water resistance rating.



Category Specification Details  Architecture MIPSBE  CPU QCA9531  CPU Core Count 1  CPU Nominal Frequency 650 MHz  RouterOS License 4  Operating System RouterOS v7  Size of RAM 64 MB  Storage Size 16 MB  Storage Type FLASH  MTBF Approximately 100,000 hours at 25°C  Tested Ambient Temperature -40°C to 70°CPowering MicroUSB Input Voltage 5 V  Number of DC Inputs 3 (DC jack, PoE-IN, MicroUSB)  DC Jack Input Voltage 8-30 V  Max Power Consumption 8 W  Cooling Type Passive  PoE In 802.3af/at  PoE In Input Voltage 12-57 VMobile 2G Category Class12  2G Bands 8 (900MHz) / 3 (1800MHz)  3G Category R7 (21Mbps Downlink, 5.76Mbps Uplink)  3G Bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)  LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)  MIMO DL 2x2  MIMO UL 1x1  LTE FDD Bands 20 (800MHz), 8 (900MHz), 3 (1800MHz), 1 (2100MHz), 7 (2600MHz), 5 (850MHz), 28 (700MHz)  LTE TDD Bands 40 (2300MHz), 38 (2600MHz), 41n (2500MHz)  TAC 86314105Wireless Specifications Wireless 2.4 GHz Max Data Rate 300 Mbit/s  Wireless 2.4 GHz Number of Chains 2  Wireless 2.4 GHz Standards 802.11b/g/n  Antenna Gain dBi for 2.4 GHz 1.5  Wireless 2.4 GHz Chip Model QCA9531  Wireless 2.4 GHz Generation Wi-Fi 4Ethernet 10/100 Ethernet Ports 1Peripherals Number of SIM Slots 2 Modem (Mini SIM)  MiniPCI-e Slots 1  Serial Console Port RS232Other Mode Button Yes  GNSS Standards GPS  GPS RF Connector Type uUFL
