MikroTik S53UG+5HaxD2HaxD-TC&RG650E-EU

MikroTik S53UG+5HaxD2HaxD-TC&RG650E

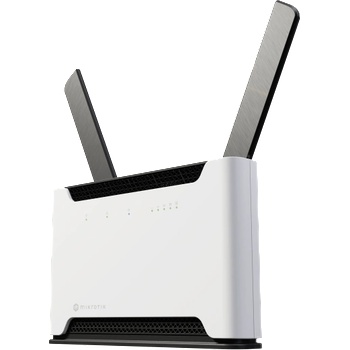

Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.

Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.

Your network, your rules: eSIM or microSIM

Chateau has a true embedded SIM (eSIM) built right in, fully compatible with:

MikroTik Connectivity
(pre-activated data plans)

Third-party eSIMs
(Mobile operator eSIM profiles)

Multiple eSIM profiles
(easily added, switched, or stored)

With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment:

Smart aggregation with wide regional FDD + TDD band support;

Extra strong signal pickup thanks to 4x4 MIMO;

Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.

Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!

Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.





Category DetailsProduct Code S53UG+5HaxD2HaxD-TC&RG650E-EUArc hitecture ARM 64bitCPU IPQ-6010CPU Core Count 4CPU Frequency 864–1800 MHzSwitch Chip Model IPQ-6010RouterOS License 4Operating System RouterOS v7RAM 1 GBStorage 128 MB NANDMTBF ~200,000 hours @ 25°CTested Ambient Temperature -40°C to 70°CIPsec Hardware Acceleration YesDC Inputs 1 (DC jack)Input Voltage 12–28 VMax Power Consumption 27 WPower w/o Attachments 18 WCooling Type Passive3G Category R8 (42.2 Mbps DL / 5.76 Mbps UL)3G Bands 1 (2100 MHz) / 5 (850 MHz) / 8 (900 MHz)LTE Category Cat 20 (2.0 Gbps DL / 211 Mbps UL)MIMO (DL/UL) 4x4 DL / 1x1 UL (5G SA UL 2x2)LTE FDD Bands 1 / 3 / 5 / 7 / 8 / 20 / 28 / 32LTE TDD Bands 38 / 40 / 41 / 42 / 435G NSA FDD Bands 1 / 3 / 5 / 7 / 8 / 20 / 26 / 28 / 67 / 75 / 765G NSA TDD Bands 38 / 40 / 41 / 77 / 785G SA FDD Bands 1 / 3 / 5 / 7 / 8 / 20 / 26 / 28 / 67 / 75 / 765G SA TDD Bands 38 / 40 / 41 / 77 / 78TAC 868965062.4 GHz Max Data Rate 574 Mbps2.4 GHz Chains 22.4 GHz Standards 802.11b/g/n/ax2.4 GHz Antenna Gain 3 dBi2.4 GHz Chip Model QCN-50222.4 GHz Wi-Fi Generation Wi-Fi 65 GHz Max Data Rate 1200 Mbps5 GHz Chains 25 GHz Standards 802.11a/n/ac/ax5 GHz Antenna Gain 6 dBi5 GHz Chip Model QCN-50525 GHz Wi-Fi Generation Wi-Fi 62.4 GHz TX/RX Performance 1Mbit/s: 23/-100, 11Mbit/s: 23/-94, 6Mbit/s: 24/-96, 54Mbit/s: 21/-80, MCS0: 24/-96, MCS7: 20/-75, MCS9: 19/-70, MCS11: 17/-675 GHz TX/RX Performance 6Mbit/s: 24/-96, 54Mbit/s: 21/-80, MCS0: 24/-96, MCS7: 20/-75, MCS9: 19/-70, MCS11: 17/-67Gigabit Ethernet Ports 4 (10/100/1000)2.5G Ethernet Ports 1SIM Slots 1 (Micro SIM)USB Ports 1 (Type A)USB Power Reset YesMax USB Current 1.5 ACPU Temp Monitor YesPCB Temp Monitor YesVoltage Monitor YesMode Button YeseSIM YesCertifications CE, EAC, ROHSIP Rating IP20
