MikroTik WAPGR-5HACD2HND&EC200A

Mikrotik wAPGR-5HacD2HnD&EC200A-EU

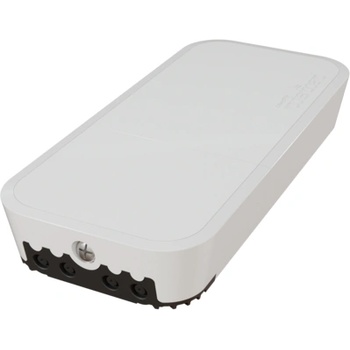

wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a serious price drop!

wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.

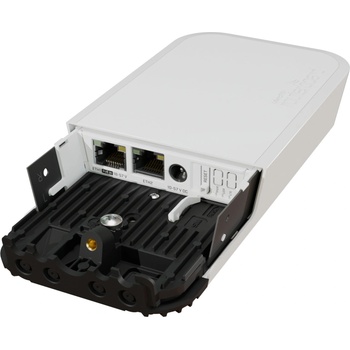

There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.





SpecificationsDetailsProduct code wAPGR-5HacD2HnD&EC200A-EUArchitecture ARM 32bitCPU IPQ-4018CPU core count 4CPU nominal frequency 488-896 (auto) MHzSwitch chip model IPQ-4018RouterOS license 4Operating System RouterOS v7 Size of RAM 128 MBStorage size 16 MBStorage type FLASHMTBF Approximately 200'000 hours at 25CTested ambient temperature -30°C to 60°CIPsec hardware acceleration YesPoweringDetailsNumber of DC inputs 2 (PoE-IN, DC jack)DC jack input Voltage 10-57 VMax power consumption 12 WCooling type PassivePoE in 802.3af/atPoE in input Voltage 18-57 VMobileDetails2G Category Class122G bands 8 (900MHz) / 3 (1800MHz)3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)3G bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)LTE FDD bands 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41n (2500MHz)TAC 86314105Wireless specificationsDetailsWireless 2.4 GHz Max data rate 300 Mbit/sWireless 2.4 GHz number of chains 2Wireless 2.4 GHz standards 802.11b/g/nAntenna gain dBi for 2.4 GHz 2.5Wireless 2.4 GHz chip model IPQ-4018Wireless 2.4 GHz generation Wi-Fi 4Wireless 5 GHz Max data rate 867 Mbit/sWireless 5 GHz number of chains 2Wireless 5 GHz standards 802.11a/n/acAntenna gain dBi for 5 GHz 2.5Wireless 5 GHz chip model IPQ-4018Wireless 5 GHz generation Wi-Fi 5EthernetDetails10/100/1000 Ethernet ports 2PeripheralsDetailsNumber of SIM slots 1 Modem (Micro SIM)MiniPCI-e slots 1OtherDetailsPCB temperature monitor YesVoltage Monitor Yes
