MikroTik WAPR-2ND&EC200A

MikroTik wAP LTE kit (2024)

wAPR-2nD&EC200A-EU

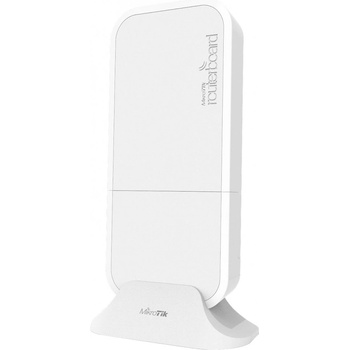

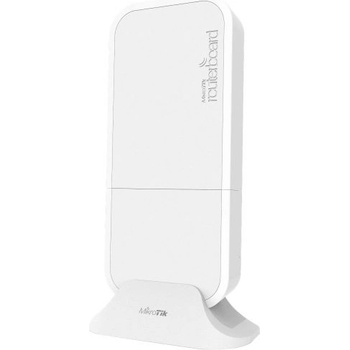

wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there’s also a standard DC jack and an automotive plug.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!

wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

Specifications< /p>DetailsArchi tecture MIPSBECPU QCA9531CPU core count 1CPU nominal frequency 650 MHzRouterOS license 4Operating System RouterOS v7 Size of RAM 64 MBStorage size 16 MBStorage type FLASHMTBF Approximately 100'000 hours at 25CTested ambient temperature -40°C to 60°CPoweringNu mber of DC inputs 3 (PoE-IN, DC jack, Automotive)DC jack input Voltage 9-30 VAutomotive input Voltage 9-30 VMax power consumption 7 WCooling type PassivePoE in Passive PoEPoE in input Voltage 9-30 VMobile2G Category Class122G bands 8 (900MHz) / 3 (1800MHz)3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)3G bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)LTE FDD bands 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)TAC 86314105Wireless specificationsWireless 2.4 GHz Max data rate 300 Mbit/sWireless 2.4 GHz number of chains 2Wireless 2.4 GHz standards 802.11b/g/nAntenna gain dBi for 2.4 GHz 2Wireless 2.4 GHz chip model QCA9531Wireless 2.4 GHz generation Wi-Fi 4Ethernet10/100 Ethernet ports 1PeripheralsNum ber of SIM slots 1 Modem (Mini SIM)MiniPCI-e slots 1OthersPCB temperature monitor YesVoltage Monitor Yes
