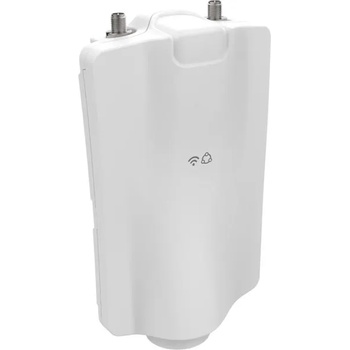

Mimosa A5X

Break PTMP Barriers to Entry - A5x Connectorized 2x2 Access Point 4.9-6.4GHz

With fast client speeds and great access point capacity, along with local and network-wide spectrum reuse, the cost-effective, connectorized A5x delivers fiber-fast connectivity for any unlicensed Fixed Wireless network.

The A5x is well suited for short to long-range pole and tower point-to-multipoint (PTMP) applications, access point colocation (GPS sync), and Municipal and Rural Licensed Public Safety multipoint (4.9 GHz). In situations where the A5c connectorized 4x4 access point is too much or too powerful, the A5x is the perfect choice.

Fiber Speeds

With access point capacity of up to 700 Mbps (IP), the A5x delivers the speeds consumers and business users demand at a fraction of the cost of delivering fiber-to-the-premises.

Increased Capacity at Each Site

With integrated, high-precision SRS (GPS sync) technology, new A5x sectors can easily be added at existing A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5x devices are installed ``back-to-back'' on the same tower or pole.

Add Subscribers with Ease

Install, aim and go! We've eliminated manual installation and pre-provisioning complexity, so you can focus on adding subscribers quickly.

Ultra-High Client Capacity

TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.

Extended Frequency Available

Rise above the noise with available extended frequency support from 4.9-6.4 GHz



Category SpecificationPe rformance  Max Throughput Up to 700 Mbps (IP)Client Capacity 64 clients (WiFi Interop); 44 clients (SRS/GPS sync)Wireless Protocols WiFi Interop, Spectrum Reuse Synchronization (SRS/GPS sync)Radio  MIMO & Modulation 2x2:2 MIMO, OFDM up to MCS9 (256-QAM 5/6)Bandwidth 20/40/80 MHz channels; Tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi InteropFrequency Range 5150–5850 MHz (FCC/ETSI/CA, PN: 100-00107); 4900–6400 MHz (ROW, PN: 100-00107-1); Restricted by country of operationMax Output Power 27 dBmSensitivity (MCS 0) -87 dBm @ 80 MHz; -90 dBm @ 40 MHz; -93 dBm @ 20 MHzPower  Max Power Consumption 9–12.9 WSystem Power Method Passive PoE (24–56 VDC)System Lightning & ESD Protection 6 kVPoE Power Supply Passive POE compliant, 24–56 VDC (PoE injector not included)Physical  Dimensions Height: 188.4 mm (7.42 including gland); Width: 75 mm (2.95); Depth: 44 mm (1.73)Weight 0.30 kg (0.70 lbs)Enclosure Characteristics Outdoor UV-stabilized engineered polymer with integrated mounting backMounting Single pole strap (not included) and slip on mount for comparable antennasConnector Type (2) RP-SMA (female)Environmental  Outdoor Ingress Protection Rating IP67Operating Temperature -40°C to +55°C (-40°F to 131°F)Operating Humidity 5 to 100% condensingOperating Altitude 4,420 m (14,500’) maximumShock & Vibration ETS 300-019-2-4 class 4M5Features  Gigabit Ethernet 10/100/1000-BASE-TCollocation Synchronization 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratioManagement Services Cloud monitoring and provisioning; SNMPv2c/v3; Syslog; HTTPS; HTML 5-based Web GUI; mDNS support; IPv4 and IPv6Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth useSecurity WPA2; AES; RADIUS; 802.1x authorizationVLANs Per subscriber VLAN; Management VLAN; CPE data VLAN; Passthrough mode; Untagged traffic control; DSCP-COS mappingQoS Supports 3 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user-configurable precedenceGPS Location GNSS1 (GPS + GLONASS)
